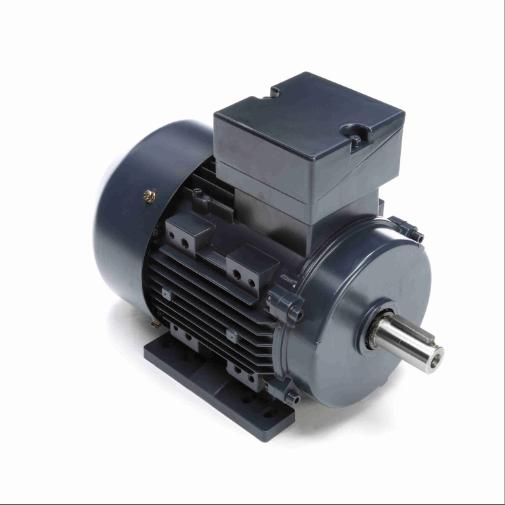

LEESON 193380.60 C100T34FZ23AAA General Purpose Motor, 4 HP, 3 Phase, 3600 RPM
Get it by Monday, Jun 16
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Metric Motor |
| Code | J |
| Design | B, J |
| Duty Cycle | Continuous |
| Efficiency Group | Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 100L |
| Frequency | 60 Hz |
| Full Load Amps | 3.75A |
| Hp | 4 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600 RPM |
| No. Of Speeds | 1 |
| Packaging | None |
| Phase | 3 |
| Power | 2.98 kW |
| Power Factor | 89 |
| Service Factor | 1.15 |
| Type | TF |
| Voltage | 575V AC |
| Ship weight (kg) | 31.95 |
| Ship height (cm) | 36.07 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 34.29 |
| Country of Origin | US |
