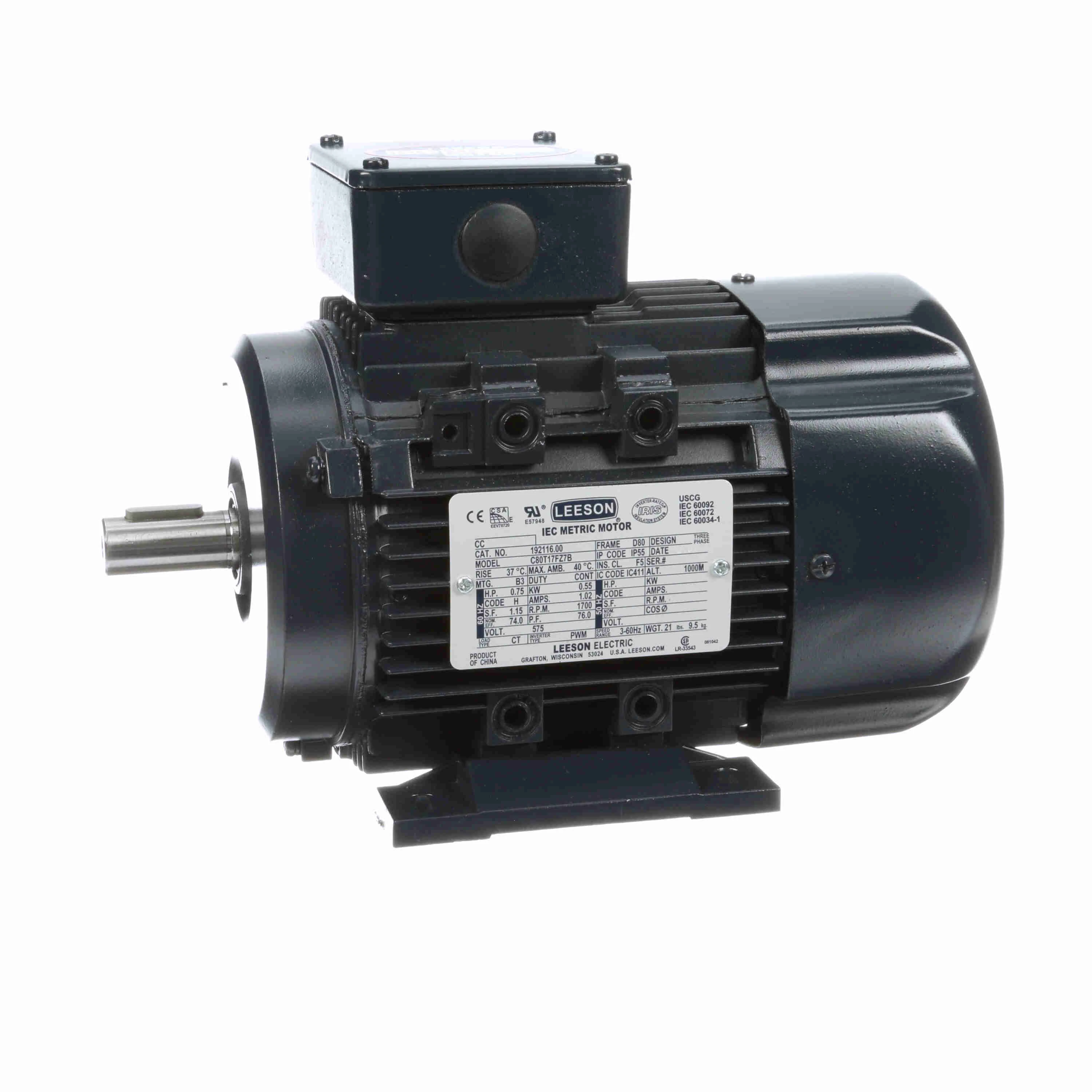

LEESON 192116.00 C80T17FZ7C General Purpose Motor, 0.75 HP, 1690 RPM
Get it by Monday, Jun 16
€135.19 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Metric Motor |
| Assembly | B3 |
| Code | H |
| Design | B, H |
| Duty Cycle | Continuous |
| Efficiency Group | Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | D80 |
| Frequency | 60 Hz |
| Full Load Amps | 1.02A |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Inverter Rated |
| Nameplate Rpm | 1800 RPM |
| No. Of Speeds | 1 |
| Packaging | None |
| Phase | 3 |
| Power | 0.56 kW |
| Power Factor | 76 |
| Service Factor | 1.15 |
| Type | TF |
| Voltage | 575V AC |
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 25.91 |
| Ship length (cm) | 34.01 |
| Ship width (cm) | 24.51 |
| Country of Origin | CN |
