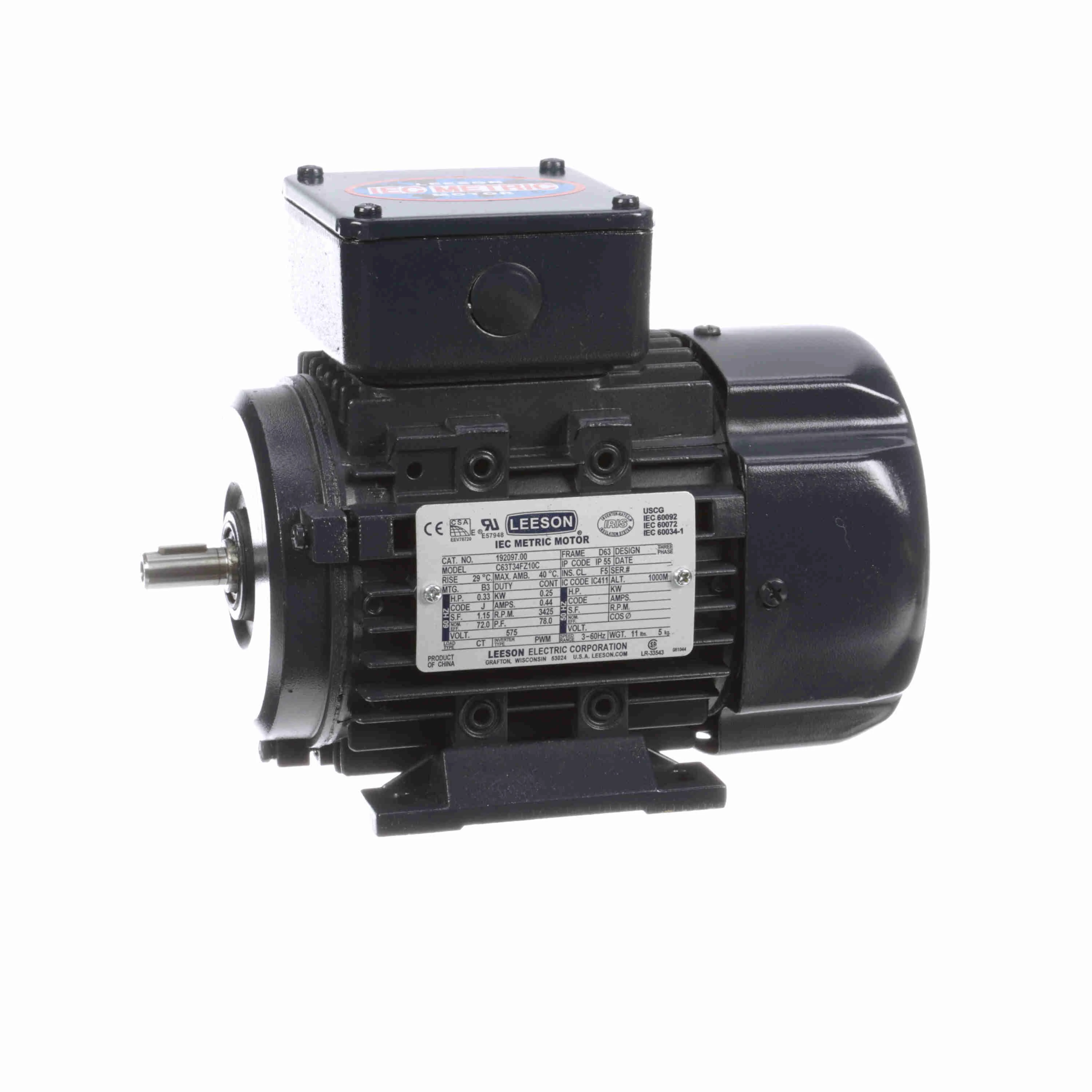

LEESON 192097.00 C63T34FZ10C Metric Motor | AJ2TRL C63T34FZ10C

LEESON 192097.00 C63T34FZ10C Metric Motor

In Stock
Item: AJ2TRL Model: 192097.00Cross Ref: C63T34FZ10C

Get it by May 24, Friday

Not eligible for flat shipping. Flat shipping is available on order value €99,00 or more and aggregate weight below 10 pounds.

€103.41 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemMetric Motor
CodeJ
DesignB
DutyContinuous
EnclosureTEFC
FrameD63
Full Load Amps.44
HP.33
Hz60
Insulation ClassF
kW0.25
LubricationVERIFY
Max. Ambient Temp.40
MountingB3
PackagingN/A
Phase3
Power Factor78
RotationREV
RPM3600
Service Factor1.15
TypeTF
Voltage575

Shipping Info:

Ship weight (kg) 5.4
Ship height (cm)19.51
Ship length (cm)25.88
Ship width (cm)17.5

Product Details:

  • Supersedes Leeson - 192097.30 / C63T34FZ20A
  • S. F Amps: .52
  • Eff 100%: 72
  • Bearing OPE: 6202
  • Bearing PE: 6202
  • Nameplate: 081044
  • Winding: QT6322
  • GROUP: 4
  • Paint: VERIFY

Product Variants

ProductModelPower FactorFrameFull Load AmpsRPMHPInsulation ClasskWMountingPrice
LEESON 192116.00 C80T17FZ7C Metric Motor | AJ2TRW C80T17FZ7C 192116.0076D801.021800.75F.56B3€143.38
LEESON 192230.00 C90T17FZ19A General Purpose Motor | AJ2TTR C90T17FZ19A 192230.007590S1.818001.5?1.12B3€241.10
LEESON 193379.60 C100T17FZ47A Metric Motor | AJ2TWT C100T17FZ47A 193379.6079.2100L3.218003F2.24Rigid-
RFQ
LEESON 193380.60 C100T34FZ23AAA Metric Motor | AJ2TWU C100T34FZ23AAA 193380.6089100L3.7536004F2.98Rigid-
RFQ
