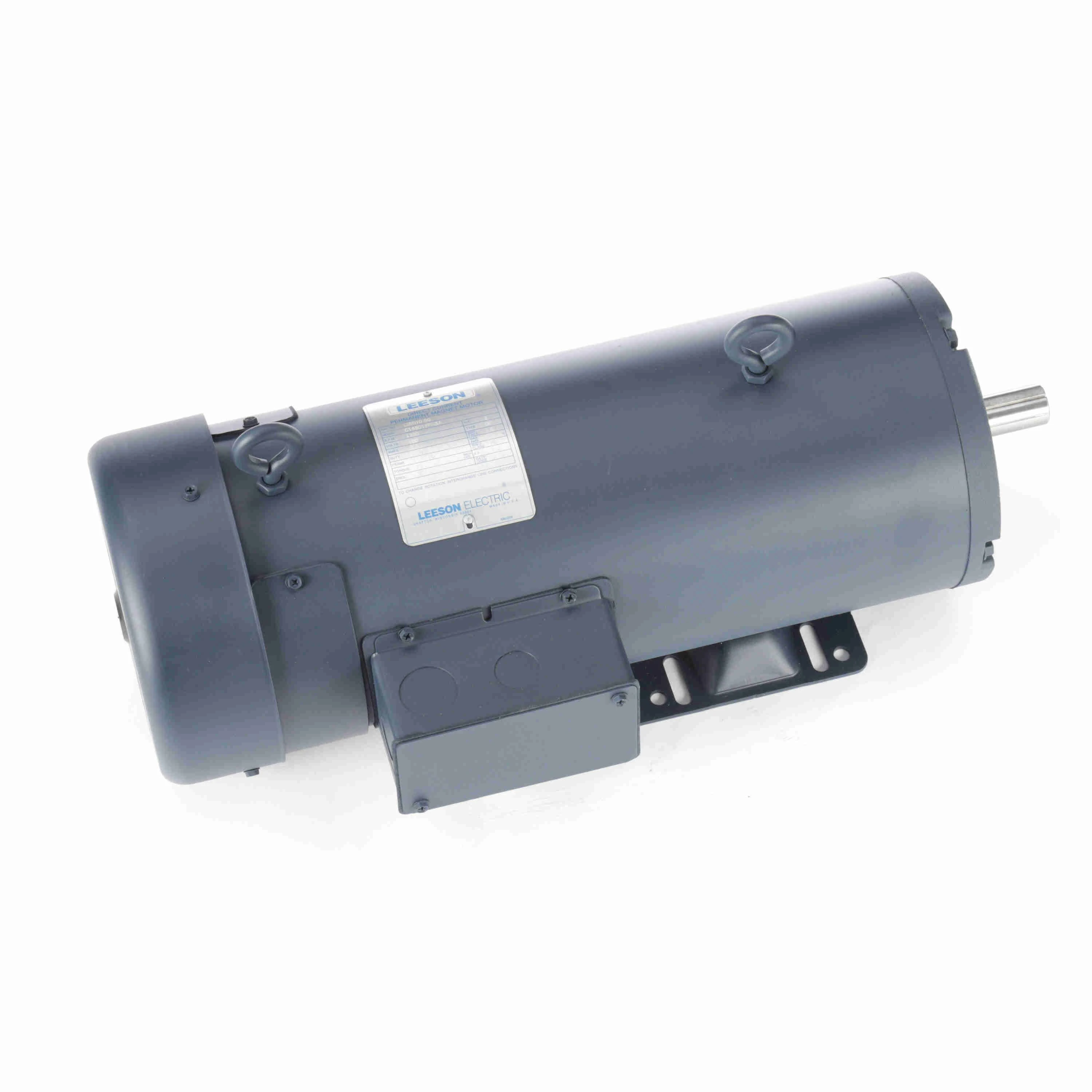

LEESON 128010.00 C145D17FK3 / C145D17FK3A SCR Motor, 2 HP, 180V, 1750 RPM
Get it by Tuesday, Jun 17
€2,461.66 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | DC Motor |
| Amps | 9.5A |
| Bearing Type | Ball |
| Brush Type | External |
| Duty Cycle | Continuous |
| Efficiency | 78.8% |
| Form Factor | 1.38 |
| Frame | 143/5TC |
| Full Load Torque | 72 lbs.-in. |
| Grease Type | Polyrex EM |
| Hp | 2 hp |
| Insulation Class | Class H |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Design | Permanent Magnet DC |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1750 RPM |
| Overall Length | 19 5/16" |
| Power | 1.5 kW |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/2" |
| Thermal Protection | None |
| Type | DF |
| Voltage | 180V |
| Full Load Amps | 9.5A |
| Ins. Class | Class H |
| Length Less Shaft | 17 5/16" |
| Motor Bearings | Ball |
| Motor Mounting Type | Face/Base |
| Motor Thermal Protection | None |
| Standards | CSA (LR2025), UL (E49747) |
| Ship weight (kg) | 38.7 |
| Ship height (cm) | 27.31 |
| Ship length (cm) | 59.39 |
| Ship width (cm) | 31.45 |
| Country of Origin | US |
| Product | Model | Amps | Frame | Full Load Amps | HP | Insulation Class | Max. Ambient Temp. | Nominal Efficiency | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
98000 | 5 | 56C | - | 1/2 | F | 40 | - | - | €990.71 | |
 |
98002 | 2.5 | 56C | - | 1/4 | F | 40 | - | - | €485.60 | |
 |
98003 | 1.4 | 56C | 1.4A | 1/4 | F | 40 Deg. C | 77.1% | 11 31/100" | €485.60 | |
 |
98004 | 3.5 | 56C | - | 1/3 | F | 40 | - | - | €519.42 | |
 |
98006 | 5 | 56C | - | 1/2 | F | 40 | - | - | €519.42 | |
 |
98007 | 2.5 | 56C | - | 1/2 | F | 40 | - | - | €519.42 | |
 |
98008 | 2.5 | 56C | - | 1/2 | F | 40 | - | - | €589.43 |
