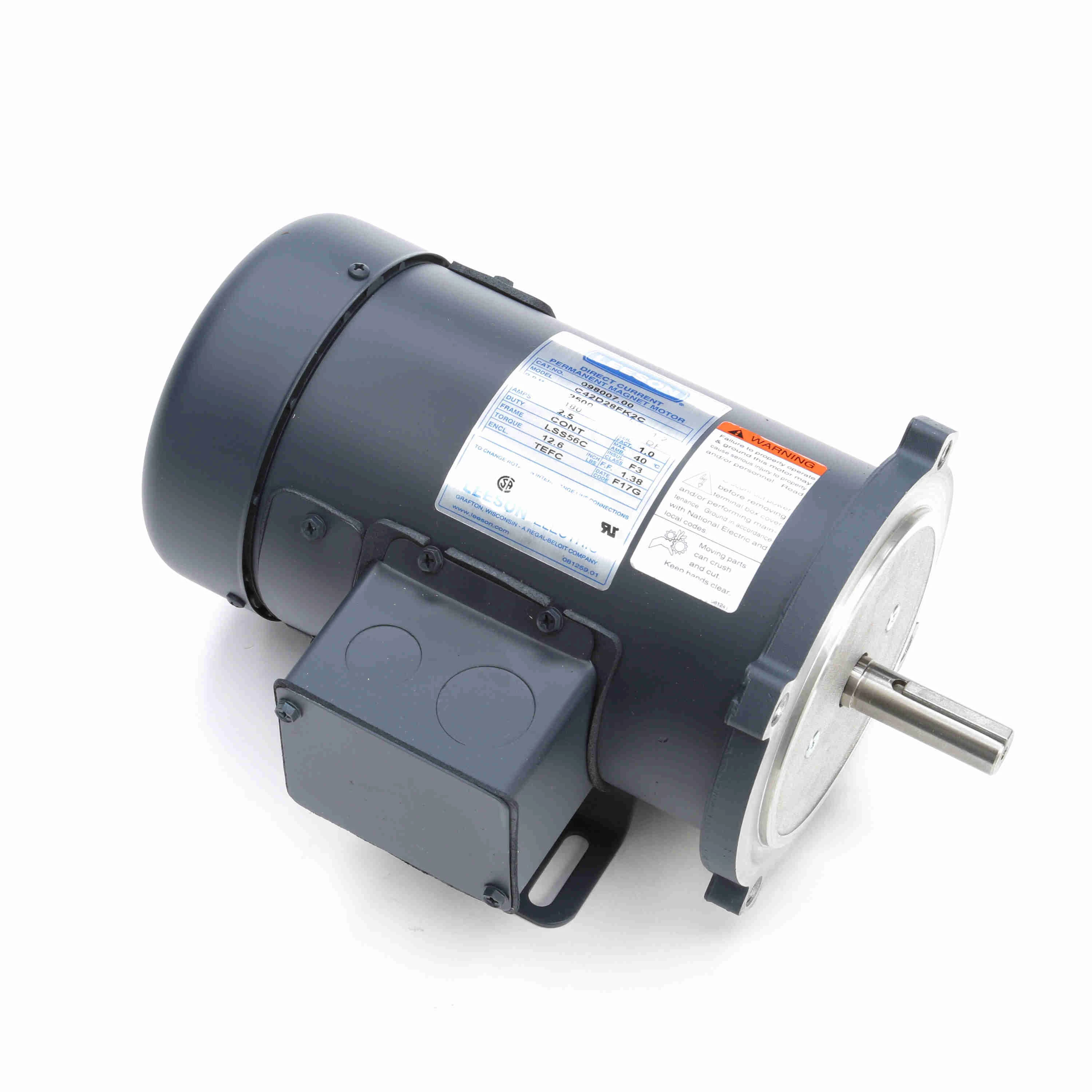

LEESON 098007.00 C42D28FK2 / C42D28FK2C SCR Motor, 0.50 HP, 180V, 2500 RPM
Get it by Wednesday, Jun 18
€519.42 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | DC Motor |
| Amps | 2.5A |
| Duty Cycle | Continuous |
| Efficiency | 80.5% |
| Form Factor | 1.38 |
| Frame | 56C |
| Full Load Torque | 12.6 lbs.-in. |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 2500 RPM |
| Packaging | PG659201.04A |
| Power | 0.37 kW |
| Rpm | 2500 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Type | DF |
| Voltage | 180V |
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
| Product | Model | Amps | Frame | Full Load Amps | HP | Insulation Class | Max. Ambient Temp. | Nominal Efficiency | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
98000 | 5 | 56C | - | 1/2 | F | 40 | - | - | €990.71 | |
 |
98002 | 2.5 | 56C | - | 1/4 | F | 40 | - | - | €485.60 | |
 |
98003 | 1.4 | 56C | 1.4A | 1/4 | F | 40 Deg. C | 77.1% | 11 31/100" | €485.60 | |
 |
98004 | 3.5 | 56C | - | 1/3 | F | 40 | - | - | €519.42 | |
 |
98006 | 5 | 56C | - | 1/2 | F | 40 | - | - | €519.42 | |
 |
98008 | 2.5 | 56C | - | 1/2 | F | 40 | - | - | €589.43 | |
 |
98009 | 7.6 | 56C | - | 3/4 | F | 40 | - | - | €668.55 |
