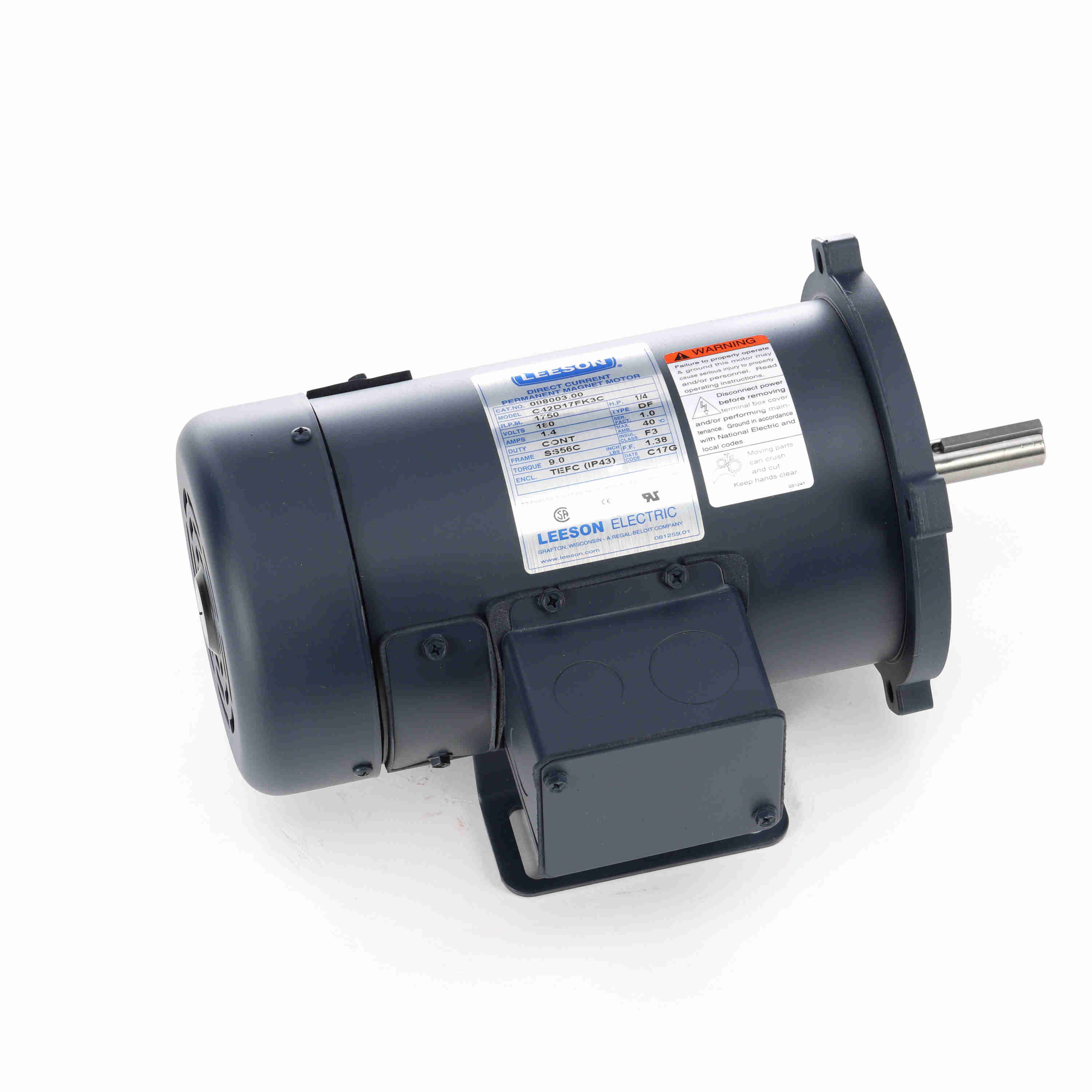

LEESON 098003.00 Dc Permanent Magnet Motor, 1/4 hp, 1750 Rpm, 180VDC

Features:

• This DC permanent magnet motor offers a voltage of 180VDC.
• It comes with a frame size of 56 cm, adhering to standard dimensions for easy drop-in replacement in existing installations without modifications.
• The Totally Enclosed Fan-Cooled (TEFC) enclosure design of this motor protects against dust, debris and moisture.
• It features a keyed motor shaft design with a diameter of 5/8 inches, providing secure attachment.
• The DC permanent magnet motor has a continuous duty cycle, allowing it to operate continuously without interruption under normal operating conditions.

Frequently Asked Questions:

Q. How does a permanent magnet DC motor differ from a general-purpose DC motor?

A. The primary difference between a permanent magnet DC (PMDC) motor and a general-purpose DC motor is their stator construction or design. A stator of a general-purpose DC motor is made of an electromagnet, whereas a PMDC motor stator uses permanent magnets. A PMDC motor is more efficient than a DC motor as these motors do not require field excitation separately. A typical DC motor needs to be excited using its field windings which can cause copper loss.

Q. What factors should I consider for selecting the right DC permanent magnet motor for my application?

A. Before selecting a permanent magnet DC motor, consider the electrical specifications required, such as the voltage rating of the power supply & power output required for application. Then, take note of other factors like frame, enclosure, insulation and mounting data of the motor to be selected for proper motor installation.
