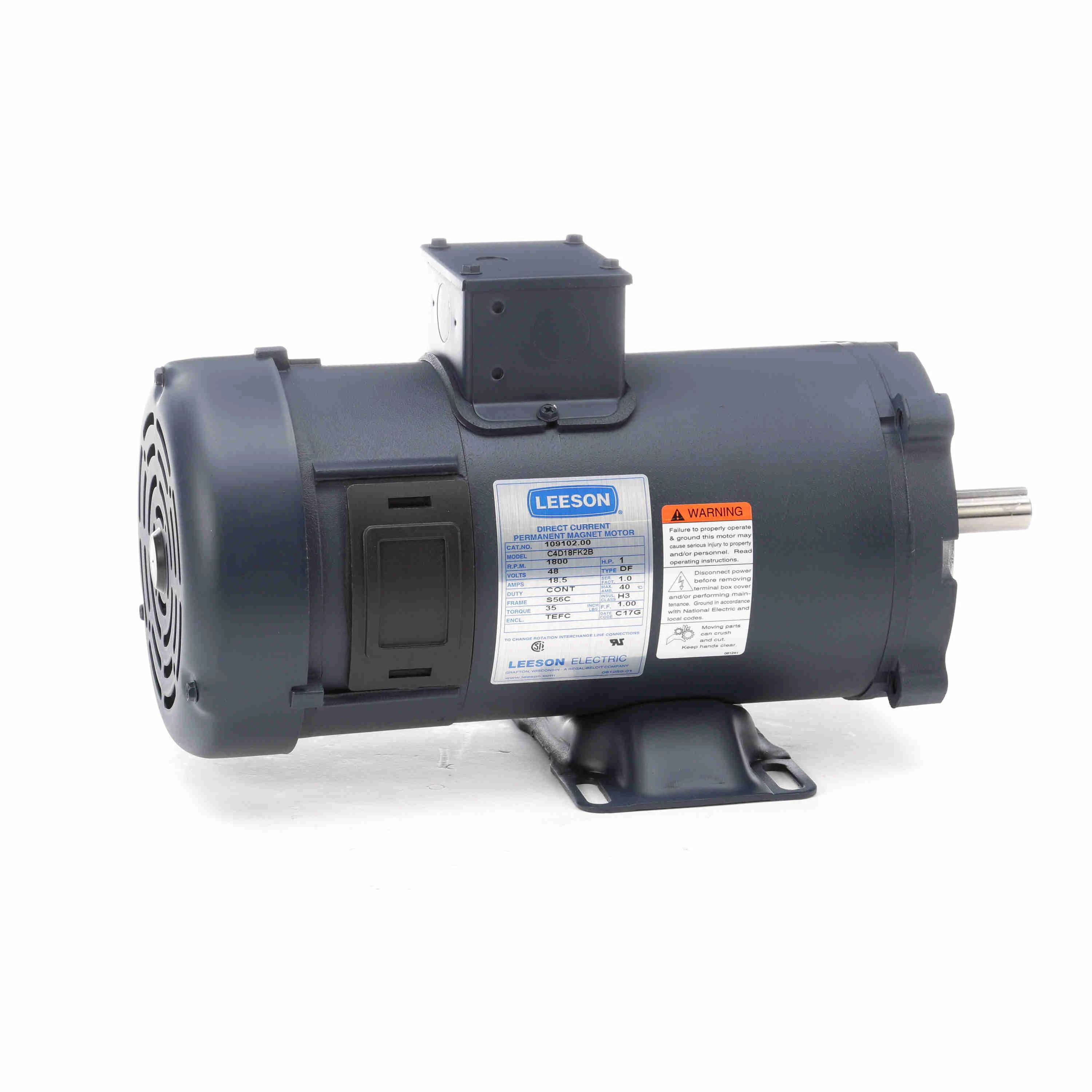

LEESON 109102.00 C4D18FK2 / C4D18FK2D Low Voltage Motor, 1 HP, 48V, 1800 RPM
Get it by Tuesday, Jun 17
€855.37 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | DC Motor |
| Amps | 18.5A |
| Duty Cycle | Continuous |
| Efficiency | 82% |
| Form Factor | 1 |
| Frame | 56C |
| Full Load Torque | 35 lbs.-in. |
| Grease Type | Polyrex EM |
| Hp | 1 hp |
| Insulation Class | Class H |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting | C Face, Rigid Base |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Packaging | PG659401.04Z |
| Power | 0.75 kW |
| Rotation | Reconn |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Type | DF |
| Voltage | 48V DC |
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
| Product | Model | Amps | Current Rating | Duty | Enclosure | Frame | Frame Size | HP | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
98381 | 13.5 | - | CONT | TEFC | 56C | - | 1/2 | F | €228.12 | |
 |
98382 | 11 | - | CONT | TEFC | 56C | - | 1/2 | F | €671.96 | |
 |
108045 | 21 | - | CONT | TENV | 56C | - | 1/4 | F | €668.14 | |
 |
108046 | 27 | - | CONT | TENV | 56C | - | 1/3 | F | €734.74 | |
 |
108047 | 39 | - | CONT | TENV | 56C | - | 1/2 | H | €765.30 | |
 |
108048 | 58 | - | CONT | TEFC | 56C | - | 3/4 | F | €842.82 | |
 |
108050 | 13.5 | 13.5A | Continuous | Totally Enclosed Non Ventilated | S56C | 4.47" | 1/3 | F | €703.62 |
