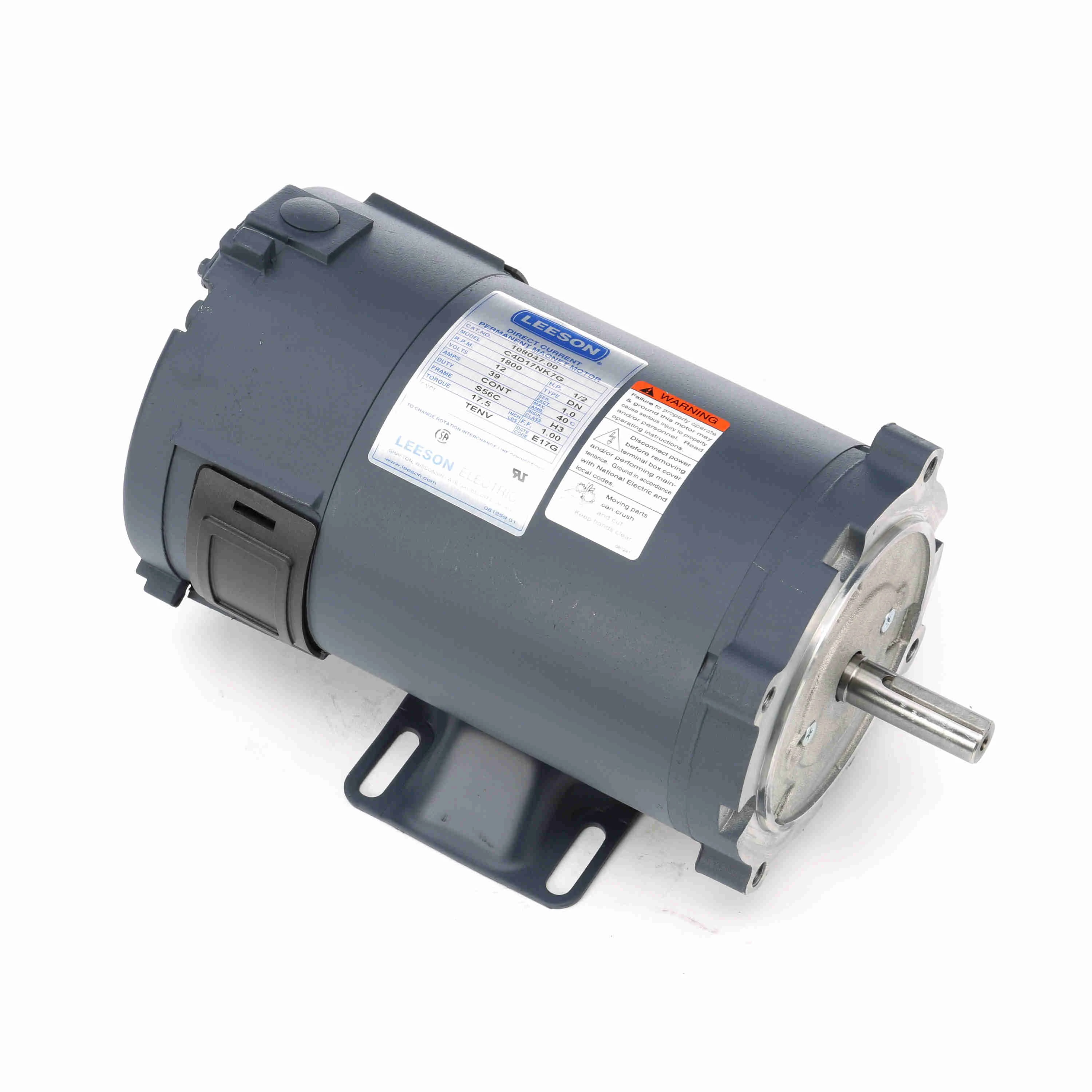

LEESON 108047.00 C4D17NK7 / C4D17NK7G Low Voltage Motor, 0.50 HP, 12V, 1800 RPM
Get it by Tuesday, Jun 17
€765.30 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | DC Motor |
| Amps | 39A |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 83.6% |
| Form Factor | 1 |
| Frame | 56C |
| Full Load Torque | 17.5 lbs.-in. |
| Grease Type | Polyrex EM |
| Hp | 1/2 hp |
| Insulation Class | Class H |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Permanent Magnet DC |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Overall Length | 11 3/4" |
| Packaging | PG659301.04A |
| Power | 0.37 kW |
| Removable Base | Yes |
| Rotation | Reconn |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | None |
| Type | DN |
| Voltage | 12V DC |
| Full Load Amps | 39A |
| Ins. Class | Class H |
| Length Less Shaft | 9 13/16" |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet DC |
| Motor Mounting Type | Face/Base |
| Motor Thermal Protection | None |
| Standards | CSA (LR2025), UL (E49747) |
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 20.17 |
| Country of Origin | US |
| Product | Model | Amps | Current Rating | Duty | Enclosure | Frame | Frame Size | HP | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
98381 | 13.5 | - | CONT | TEFC | 56C | - | 1/2 | F | €228.12 | |
 |
98382 | 11 | - | CONT | TEFC | 56C | - | 1/2 | F | €671.96 | |
 |
108045 | 21 | - | CONT | TENV | 56C | - | 1/4 | F | €668.14 | |
 |
108046 | 27 | - | CONT | TENV | 56C | - | 1/3 | F | €734.74 | |
 |
108048 | 58 | - | CONT | TEFC | 56C | - | 3/4 | F | €842.82 | |
 |
108050 | 13.5 | 13.5A | Continuous | Totally Enclosed Non Ventilated | S56C | 4.47" | 1/3 | F | €703.62 | |
 |
108051 | 20 | - | CONT | TENV | 56C | - | 1/2 | F | €729.28 |
