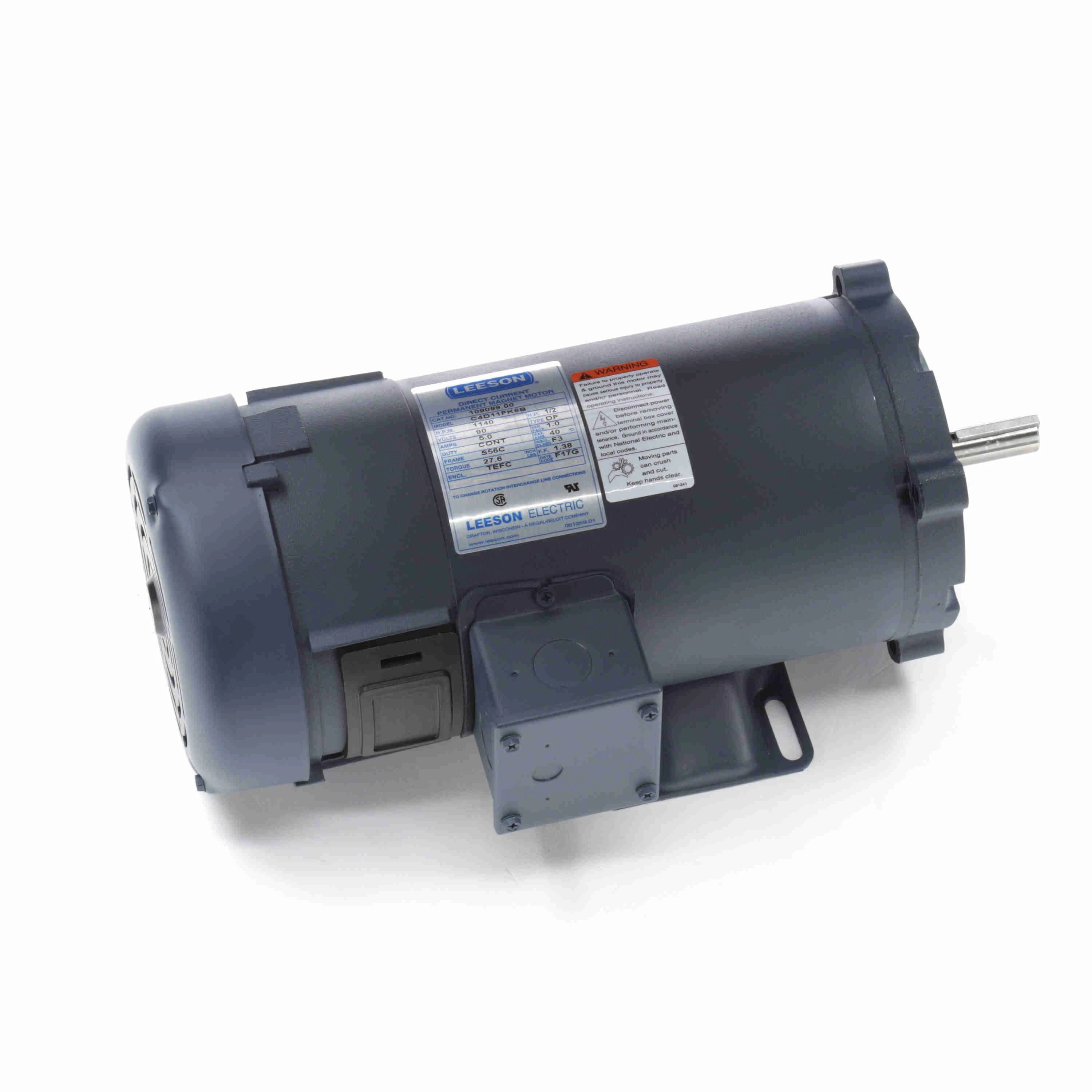

LEESON 109099.00 C4D11FK6 / C4D11FK6D SCR Motor, 0.50 HP, 90V, 1140 RPM
Get it by Tuesday, Jun 17
€668.01 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | DC Motor |
| Amps | 5A |
| Duty Cycle | Continuous |
| Efficiency | 78% |
| Form Factor | 1.38 |
| Frame | 56C |
| Full Load Torque | 27.6 lbs.-in. |
| Grease Type | Polyrex EM |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1140 RPM |
| Packaging | PG659401.04Z |
| Power | 0.37 kW |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Type | DF |
| Voltage | 90V DC |
| Ship weight (kg) | 18 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
| Product | Model | Amps | Frame | Full Load Amps | HP | Insulation Class | Max. Ambient Temp. | Nominal Efficiency | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
98000 | 5 | 56C | - | 1/2 | F | 40 | - | - | €990.71 | |
 |
98002 | 2.5 | 56C | - | 1/4 | F | 40 | - | - | €485.60 | |
 |
98003 | 1.4 | 56C | 1.4A | 1/4 | F | 40 Deg. C | 77.1% | 11 31/100" | €485.60 | |
 |
98004 | 3.5 | 56C | - | 1/3 | F | 40 | - | - | €519.42 | |
 |
98006 | 5 | 56C | - | 1/2 | F | 40 | - | - | €519.42 | |
 |
98007 | 2.5 | 56C | - | 1/2 | F | 40 | - | - | €519.42 | |
 |
98008 | 2.5 | 56C | - | 1/2 | F | 40 | - | - | €589.43 |
