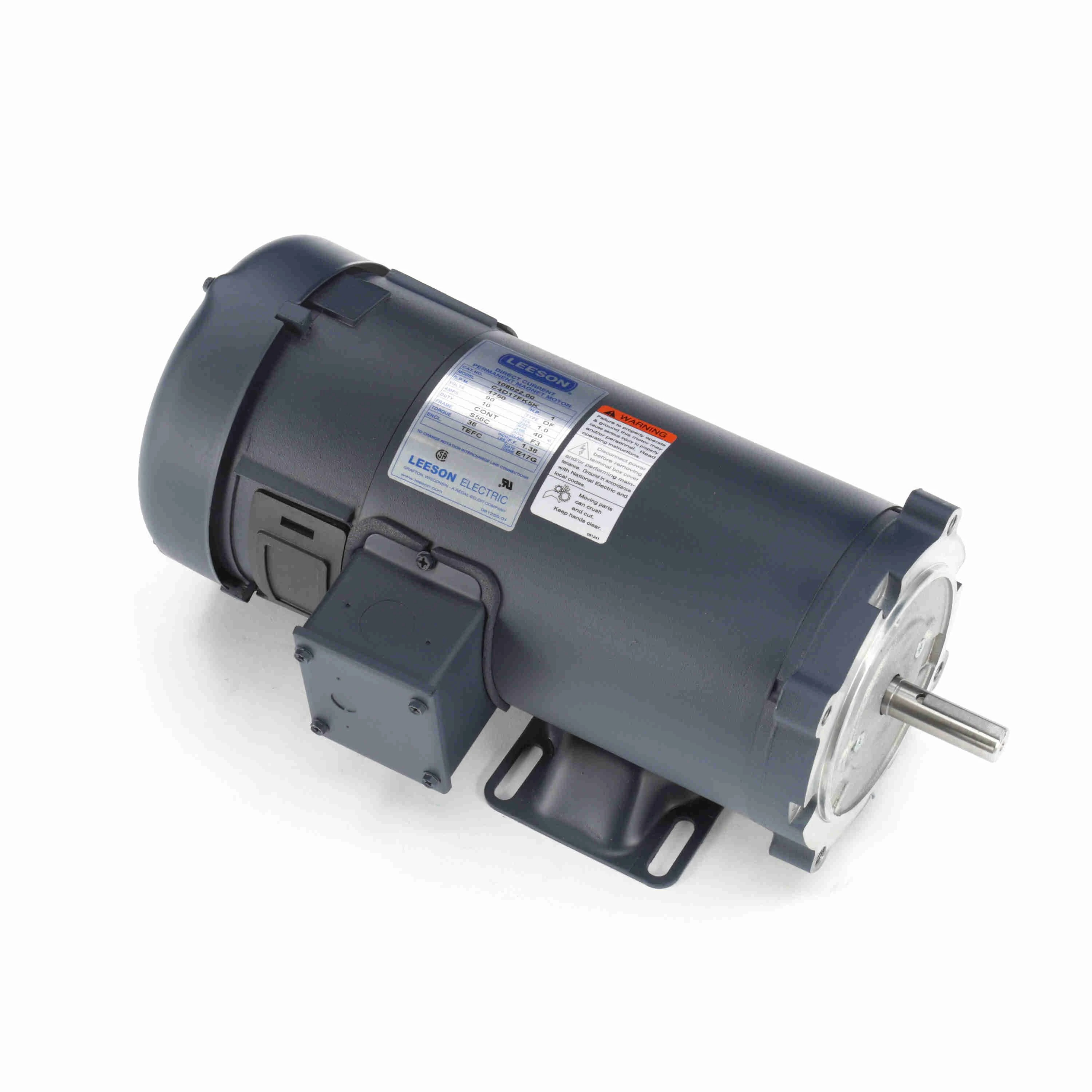

LEESON 108022.00 C4D17FK5 / C4D17FK5L SCR Motor, 1 HP, 90V, 1750 RPM
Get it by Tuesday, Jun 17
€894.38 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | DC Motor |
| Amps | 10A |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 83.7% |
| Form Factor | 1.38 |
| Frame | 56C |
| Full Load Torque | 36 lbs.-in. |
| Grease Type | Polyrex EM |
| Hp | 1 hp |
| Insulation Class | Class F |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Design | Permanent Magnet DC |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1750 RPM |
| No. Of Studs | 4 |
| Overall Length | 14 13/16" |
| Packaging | PG659401.04Z |
| Power | 0.75 kW |
| Removable Base | Yes |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Stud Size | 3/8"-16 |
| Thermal Protection | None |
| Type | DF |
| Voltage | 90V DC |
| Full Load Amps | 10A |
| Ins. Class | Class F |
| Length Less Shaft | 12 7/8" |
| Motor Bearings | Ball |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1 |
| Motor Thermal Protection | None |
| Standards | CSA (LR2025), UL (E49747) |
| Stud Quantity | 4 |
| Weight | 34 lbs. |
| Ship weight (kg) | 18 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
| Product | Model | Amps | Frame | Full Load Amps | HP | Insulation Class | Max. Ambient Temp. | Nominal Efficiency | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
98000 | 5 | 56C | - | 1/2 | F | 40 | - | - | €990.71 | |
 |
98002 | 2.5 | 56C | - | 1/4 | F | 40 | - | - | €485.60 | |
 |
98003 | 1.4 | 56C | 1.4A | 1/4 | F | 40 Deg. C | 77.1% | 11 31/100" | €485.60 | |
 |
98004 | 3.5 | 56C | - | 1/3 | F | 40 | - | - | €519.42 | |
 |
98006 | 5 | 56C | - | 1/2 | F | 40 | - | - | €519.42 | |
 |
98007 | 2.5 | 56C | - | 1/2 | F | 40 | - | - | €519.42 | |
 |
98008 | 2.5 | 56C | - | 1/2 | F | 40 | - | - | €589.43 |
