| Item | Flowmeter |
| Connection Size | 1" |
| Connection Type | BSPT |
| Display Type | LCD |
| Display Units | Gallons, Liters, Ounces, Pints, Quarts |
| Flow Range | 2-35 GPM |
| Flow Range @ Gph | 120-2100 GPH |
| Flow Rate Range | 2-35 GPM |
| Fluid Temp. | -40°F to +176°F |
| For Pipe Size | 1" |
| Housing Finish | Nickel Plated |
| Housing Material | Aluminum |
| Max. Pressure | 50 psi |
| Max. Viscosity | 370 SUS |
| Overall Length | 3" |
| Rotor Type | Acetal |
| Sensor Type | Reed Switch |
| Type | Turbine |
| Wetted Material | Acetal, Gold, Aluminum, Stainless Steel |
| Accuracy % | +/-1% |
| Compatible Flow Materials | B100, Diesel, E85, Fuels, Gasoline, Water |
| Flowmeter Type | Turbine |
| Includes Flow Rate Adjustment Knob | Yes |
| Includes Pressure Gauge | No |
| Includes Totalizer | Yes |
| Inlet/outlet Connection | 1" BSPP |
| Max. Flow Rate | 35 GPM |
| Max. Operating Pressure | 50 psi |
| Max. Voltage | Battery |
| Media Temp. Range | -40°F to 176°F |
| Media Temperature (maximum) | 176°F |
| Min. Flow Rate | 2 GPM |
| Min. Media Temperature | -40°F |
| Mounting Location | Inline |
| Mounting Orientation | Universal |
| O-ring Materials | Buna-N |
| Overall Length | 3" |

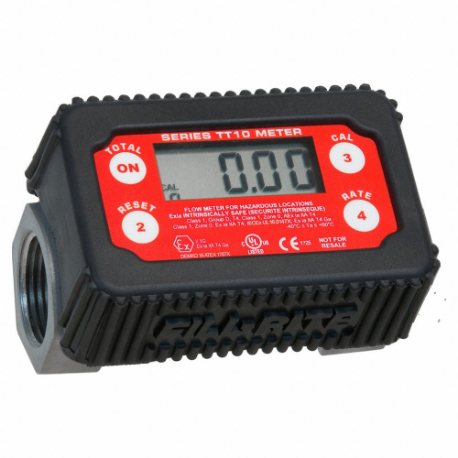

| Product Type | In-Line Digital Turbine Meter |
| Pulse Rate | 10 pulses/gal. |
| Rotor Material | Acetal |
| Seal Material | Buna-N, Viton |
| Shaft Material | Stainless Steel |
| Standards | ATEX, CE CERTIFIED, CULUS LISTED, IECEX |
| Termination | Not Listed |
| Unit Of Measure | Gallons, Liters |
| Voltage Range | Battery |
| Wetted Material | Acetal, Gold, Nickle Plated Aluminum, Stainless Steel |
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 18.8 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 15.75 |
| Country of Origin | US |
