FILLRITE

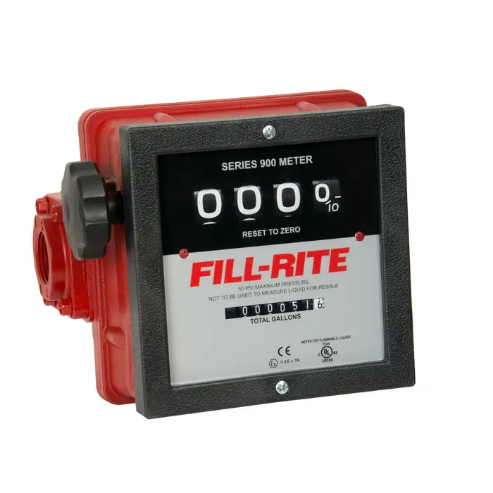

FILLRITE 901C Liquid Mechanical Flowmeter, 1 Inch FNPT Connection | AH9KGR 3XNL1

FILLRITE 901C Liquid Mechanical Flowmeter, 1 Inch FNPT Connection

In Stock
Item: AH9KGR Model: 901CCross Ref: 3XNL1
Check Availability
See variants (10)

Get it by May 24, Friday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€694.38 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemMechanical Flowmeter
Connection Size1"
Connection TypeFNPT
Flow Range6 to 40 gpm
Fluid Temp. Range-40 Degrees to 140 Degrees F
For Pipe Size1"
GPM Max.40
Height5.5"
Length9.25"
Max. Pressure50 psi
Max. Viscosity50 SSU
Wetted MaterialsAluminum, Buna-N, Fluorocarbon, Nickel, Ryton(R), Stainles Steel, PTFE
Width6.25"

Shipping Info:

Ship weight (kg) 3.24
Ship height (cm)17.78
Ship length (cm)27.94
Ship width (cm)20.32
Country of OriginUS

Product Details:

  • Fill-Rite 901C flow meter designed for metering viscous fluids in transfer pumps with flow rates of 6 - 40 GPM
  • Features nickel-plated aluminium construction for durability, 4-digit resettable display with easy field calibration and inlet / outlet flow ports in 90 degree increments for easy installation in both vertical & horizontal orientations
  • Capability to handle diesel, gasoline, kerosene, mineral spirits, Stoddard solvents and heptane
  • Meets UL / cUL standards

Product Variants

ProductModelLengthAccuracyConnection SizeMax. ViscositySeal MaterialTemp.ThreadTypePrice
FILLRITE 807CN1 Liquid Mechanical Flowmeter, Viton Seal, FNPT Connection | AB2VRY 1P951 807CN18"+/-1.0 %1 MNPT50Viton150NPTLiquid€567.79
FILLRITE 900CD Digital Flow Meter, 50 PSI, NPT Threads, 6 - 40 GPM | AC4RXQ 30J078 900CD8"+/- 125 %1 MNPT50 SSUBuna/Viton140 Degrees FNPTNutating Disk€758.52
FILLRITE 900CD1.5 Liquid Mechanical Flowmeter, Nutating Disc Mechanism | AC4RXR 30J079 900CD1.58"+/- 125 %1-1/2 MNPT50 SSUBuna/Viton140 Degrees FNPTNutating Disk€852.94
FILLRITE 900CDBSPT Liquid Mechanical Flowmeter, BSPT Threads, 1 Inch Pipe Size | AC4RXT 30J080 900CDBSPT8"+/- 125 %1 BSPT50 SSUBuna/Viton140 Degrees FBSPPNutating Disk€933.75
FILLRITE 900CD1.5BSPT Liquid Mechanical Flowmeter, 1-1/2 Inch BSPT Threads | AC4RXU 30J081 900CD1.5BSPT8"+/- 125 %1-1/2 BSPT50 SSUBuna/Viton140 Degrees FBSPPNutating Disk€933.75
FILLRITE 807C1 Liquid Mechanical Flowmeter, 1 Inch MNPT Connection | AD9GBD 4RP91 807C18"+/-1.0 %1 MNPT50Viton(R) and Buna150NPTLiquid€416.44
FILLRITE 901C1.5 Liquid Mechanical Flowmeter, 1-1/2 Inch MNPT Connection | AD9GBE 4RP92 901C1.59.25"+/-2.0 %1-1/2 MNPT50Viton(R) and Buna150NPTLiquid€622.11
