FILLRITE
FILLRITE FR1612 Fuel Transfer Pump 10 gpm 12VDC | AH8ETR 38NH83

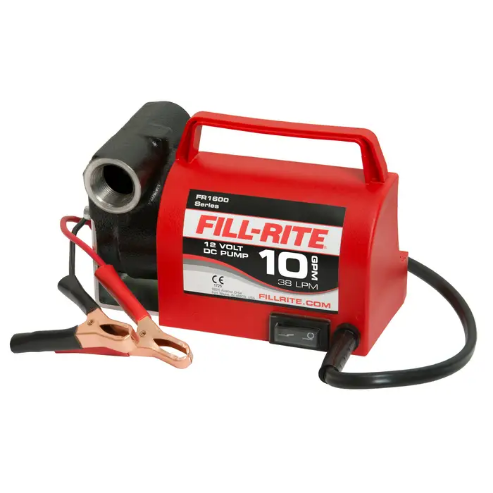

FILLRITE FR1612 Fuel Transfer Pump 10 gpm 12VDC

In Stock
Item: AH8ETR Model: FR1612Cross Ref: 38NH83
Check Availability
See variants (21)

Get it by May 24, Friday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€276.40 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemFuel Transfer Pump
Bearing TypeAdjustable
Bypass ValveYes
Compatible FluidsDiesel, Antifreeze
Duty Cycle30 min.
GPM10
Housing MaterialCast iron
HP1/5
Inlet Size3/4"
Max. Viscosity50 SSU
MeteredNo
Outlet Size3/4"
Overall Height5"
Overall Length7"
Overall Width3.75"
Power Cord Length6.5ft.
Pressure Range12 psi
Pump DesignRotary Vane
RPM4000
Seal MaterialHNBR
Seal TypeMechanical
Self-PrimingYes
Voltage12 VDC

Shipping Info:

Ship weight (kg) 3.96
Ship height (cm)16.51
Ship length (cm)26.16
Ship width (cm)19.05
Country of OriginUS

Product Details:

  • Transfer Pump Application : Agriculture, Barrel Mounting, Construction, Stationary Installations, Tank
  • Pump Mount Size : 2"

Product Variants

ProductModelInlet SizeAmps ACBearing TypeOutlet SizeOverall HeightOverall LengthOverall WidthPower Cord LengthPrice
FILLRITE FR2411G Transfer Pump 1/4 Hp 24 Vdc 15 Gpm | AC4RXW 30J089 FR2411G1-1/4" MNPT30Sealed Ball1" FNPT11"15"10"18ft.€1,191.57
FILLRITE FR4211G Transfer Pump 1/4 Hp 12 Vdc 20 Gpm | AC4RXX 30J090 FR4211G1" MNPT4.9Sealed Ball1" FNPT18"18.25"18.625"18ft.€1,465.70
FILLRITE FR319VB Transfer Pump 1/4 Hp 115/230 Vac 35 Gpm | AC4RXZ 30J092 FR319VB1" MNPT9.8/4.9/11.4/5.7Ball1" FNPT14.375"18 9/16"14.25"-€2,895.76
FILLRITE FR610GA Fuel Transfer Pump 1/4 Hp 115vac 15 Gpm | AC4RYA 30J093 FR610GA1" MNPT1.5Ball without Lubrication3/4" FNPT15.75"16"13.25"-€887.70
FILLRITE SD1202G Fuel Transfer Pump 1/4 Hp 12vdc 13 Gpm | AC9WMZ 3KZH7 SD1202G1" MNPT20Ball3/4" FNPT9"9"7.5"-€751.28
FILLRITE FR4210GBFQ Fuel Transfer Pump 1/4 Hp 12vdc | AD7QMU 4FY15 FR4210GBFQ1" MNPT20Permanently Lubricated Ball3/4" FNPT17"14"9"25ft.€1,534.16
FILLRITE FR1614 Pump Rotary Vane 1/5 Hp 12 Vdc | AD9HYR 4RZJ4 FR16143/4" MNPT20Ball1" FNPT3.75"7.125"5.125"6.5ft.€414.61
