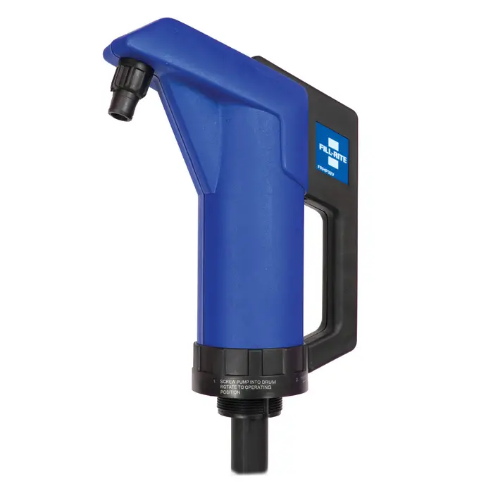

FILLRITE FRHP32V Hand Operated Drum Pump, with Telescoping Suction Tube

Name: FILLRITE FRHP32V Hand Operated Drum Pump, with Telescoping Suction Tube
Brand: FILLRITE
SKU: AF2RJT
Price: 178.87 EUR
Availability: InStock

In Stock

Item: AF2RJT Model: FRHP32VCross Ref: 6XGV2

Check Availability

See variants (7)

Get it by May 24, Friday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

€178.87 /unit

Add To Cart

Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

Item	Hand Operated Drum Pump
Action Type	Piston
Adapter Dia.	2"
Adapter Material	Polypropylene
Adapter Type	Bung
Discharge Tubing Material	Polymer
For Use On	DEF, Light Oils, Gear Lube, Hydraulic Oils
Gasket Material	Fluorocarbon
GPM	11 oz. Per Stroke
Housing Material	Polypropylene
Inlet Size	1"
Max. GPM for Oil	11 oz. Per Stroke
Max. GPM for Water	11 oz. Per Stroke
Max. Head	115 ft.
Max. Liquid Temp.	120 Degrees F
Max. Pressure	50 psi
Max. Temp.	120 Degrees F
Max. Viscosity	50 SSU
Maximum Head	115 ft.
Metered	No
Ounces per Stroke	11 oz.
Outlet Size	3/4"
Overall Length	35.5"
pH Range	3.6 to 11.9
Piston Material	Polypropylene
Pump Body Material	Polypropylene
Seal Material	Polyethylene
Suction Tube Length	19-3/4" to 35-1/2"
Suction Tube Outlet I.D. Size	1"
Suction Tube Outlet O.D. Size	1-1/8"
Suction Tube Type	Telescopic
Wetted Materials	Polypropylene, Fluorocarbon

Shipping Info:

Ship weight (kg)	1.42
Ship height (cm)	53.59
Ship length (cm)	23.88
Ship width (cm)	11.68
HS code	8413200000
Country of Origin	GB

Product Details:

Fill-Rite FRHP32V hand pump designed for transferring mild acids; engine, gear & hydraulic oils; diesels, anti-freeze, transmission fluids and degreasers
Durable polypropylene construction for withstanding harsh impacts, as well as reactive chemicals & fluids
Self-priming action for ensuring consistent output and hand lever action for hassle-free pumping & user comfort
Delivers 325 ml per stroke

Product Variants

Model	Length	Adapter Type	For Use On	Max. Viscosity	Outlet Size	Overall Length	pH Range	Piston Material	Price
FR152	-	2" Bung	-	1500 SSU	3/4" FNPT	19"	-	-	€358.47
FR112A	-	2" Bung	-	1500 SSU	3/4" FNPT	24"	-	-	€344.01
FR20V	-	Bung	Drums, Totes and Barrels	50 SSU	3/4" FNPT	35.5"	3.6 to 11.9	Polypropylene	€168.59
FR151	-	Bung	Drums, Totes and Barrels	1500 SSU	3/4" FNPT	34.75"	5 to 7	Aluminum	€361.07
FR112AC	-	-	-	1500 SSU	3/4" FNPT	13"	-	-	€554.12
SD62	39"	-	-	-	-	-	-	-	€126.91
SD11	35"	-	-	-	-	-	-	-	€71.86
