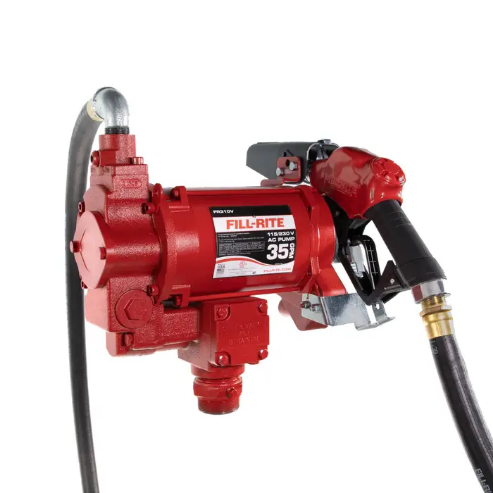

| Item | Fuel Transfer Pump |
| Bearing Type | Sealed |
| Bypass Valve | Internal |
| Discharge Connection Type | NPT |
| Discharge Hose Size | 1" x 18 ft. |
| Duty Cycle | 30 min. On/30 min. Off |
| Explosion Proof | Yes |
| For Container Size | 10000 gal. |
| Full Load Amps | 11.4A |
| Hose Dia. | 1" |
| Housing Material | Cast Iron |
| Hp | 3/4 hp |
| Includes | Cable, Discharge Hose, Nozzle |
| Includes Suction Tube | No |
| Inlet Size | 1 1/4" |
| Max. Flow Rate | 35 GPM |
| Max. Head | 60 ft. |
| Max. Head Pressure | 26 psi |
| Max. Outlet Pressure | 26 psi |
| Max. Viscosity | 50 SUS |
| Media Type | B20, Diesel, E15, Gasoline, Kerosene |
| Metered | No |
| Motor Enclosure Design | Explosion Proof |
| Motor Speed | 1725 RPM |
| Motor Type | Permanent Magnet |
| Mount Type | Bung |
| Nozzle Material | Aluminum |
| Nozzle Type | Automatic Diesel |
| Outlet Size | 1" |
| Overall Height | 15 3/4" |
| Overall Length | 16" |
| Overall Width | 13 1/4" |
| Power Cord Length | 1 ft. |
| Power Source | Electric |
| Pump Connection Type | NPT |
| Pump Design | Rotary Vane |
| Pump Kit Type | Pump With Hose And Nozzle |
| Rated Voltage | 230V AC |
| Seal Material | Carbon |
| Seal Type | Mechanical |
| Self Priming | Yes |
| Series | 300 Series |
| Agency Compliance | cULus |
| Cord Length | 1 ft. |
| For Media Type | B20, Diesel, E15, Gasoline, Kerosene |
| Full Load Current (a) | 11.4A |
| Motor Enclosure | Explosion Proof |
| Motor Hp | 3/4 hp |
| Motor Speed (rpm) | 1725 RPM |
| Self-priming | Yes |
