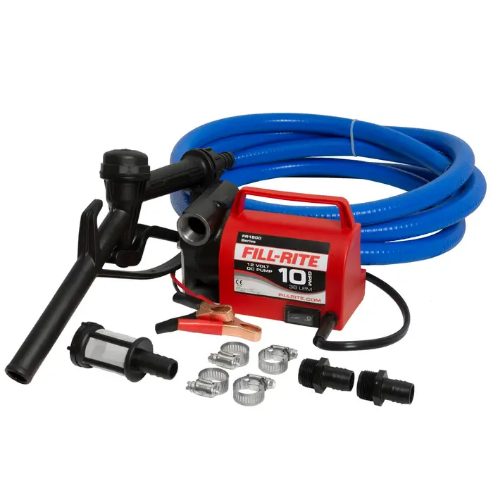

| Item | Fuel Transfer Pump |
| Bearing Type | Ball |
| Bung Adapter Connection Type | F Hose Barb |
| Bung Adapter Material | Cast Iron |
| Bypass Valve | Internal |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | Hose Barb |
| Discharge Hose Size | 3/4" x 8 ft. |
| Duty Cycle | 30 min. On/30 min. Off |
| Explosion Proof | No |
| Food Grade | No |
| For Container Size | 200 gal. |
| Full Load Amps | 17A |
| Height Above Container | 5" |
| Hose Cover Material | PVC |
| Hose Dia. | 3/4" |
| Hose Tube Material | PVC |
| Housing Material | Cast Iron |
| Hp | 1/5 hp |
| Includes | Cable, Discharge Hose, Nozzle |
| Includes Bung Adapter | No |
| Includes Spout | No |
| Includes Suction Tube | Yes |
| Max. Flow Rate | 10 GPM |
| Max. Head | 36 ft. |
| Max. Head Pressure | 50 psi |
| Max. Media Temp. | 105°F |
| Max. Outlet Pressure | 16 psi |
| Max. Viscosity | 50 SUS |
| Media Type | Antifreeze, Diesel |
| Metered | No |
| Min. Media Temp. | -40°F |
| Motor Enclosure Design | Non Explosion Proof |
| Motor Speed | 1725 RPM |
| Motor Type | Permanent Magnet |
| Mount Type | Foot Mounted |
| Nozzle Material | Polypropylene |
| Nozzle Type | Manual Diesel |
| Outlet Size | 1" |
| Overall Height | 3 3/4" |
| Overall Length | 7 1/8" |
| Overall Width | 5 1/8" |
| Power Cord Length | 6.5 ft. |
| Power Source | Electric |
| Pump Design | Rotary Vane, Positive Displacement |
| Pump Kit Type | Pump With Hose And Nozzle |
| Rated Voltage | 12V DC |
| Runs Dry | Yes |
| Seal Material | Buna N |
| Seal Type | Mechanical |
| Self Priming | Yes |
| Series | FR1600 Series |
| Suction Tube Outside Dia. | 3/4" |
| Variable Speed | No |
| Wetted Material | Carbon Steel, Cast Iron, Hydrogenated Nitrile Butadiene Rubber |
| Agency Compliance | CE |
| Cord Length | 6.5 ft. |
| For Media Type | Anti-Freeze, Diesel |
| Full Load Current (a) | 17A |
| Maximum Fluid Temperature | 105°F |
| Maximum Head | 36 ft. |
| Maximum Head Pressure | 50 psi |
| Maximum Outlet Pressure | 16 psi |
| Maximum Viscosity | 50 SUS |
| Meter | Not Included |
| Minimum Fluid Temperature | -40°F |
| Motor Enclosure | Non Explosion Proof |
| Motor Hp | 1/5 hp |
| Motor Speed (rpm) | 1725 RPM |
| Self-priming | Yes |
| Suction Tube Od | 3/4" |
| Wetted Materials | Carbon Steel, Cast Iron, HNBR |
| Ship weight (kg) | 6.32 |
| Ship height (cm) | 18.42 |
| Ship length (cm) | 40.97 |
| Ship width (cm) | 40.97 |
| HS code | 8413600090 |
| Country of Origin | US |
