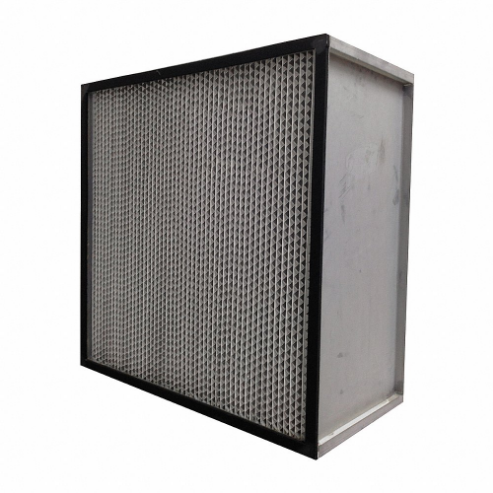

AIR HANDLER 5W923 Cartridge Filter 24 x 24 x 12 Inch
Get it by Tuesday, Jun 17
€256.69 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Cartridge Filter |
| Air Flow Rate | 500 FPM |
| Filter Efficiency | 85% |
| Final Recommended Resistance | 1.5 in. wc |
| Frame | Yes |
| Header | Single |
| Initial Resistance | 0.6 in. wc |
| Max. Air Flow | 500 FPM |
| Max. Temp. | 250°F |
| Media Area | 105 sq. ft. |
| Nominal Depth | 12" |
| Nominal Height | 24" |
| Nominal Width | 24" |
| Actual Depth | 11 1/2" |
| Actual Filter Size | 23 3/8" x 23 3/8" x 11 1/2" |
| Actual Height | 23 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 1200 CFM |
| Air Flow @ 500 Fpm | 2000 CFM |
| Collapsible | No |
| Filter Efficiency - Air Filters | 85% |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Frame Or Header Material | Steel |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 500 Fpm | 0.52 in. wc |
| Max. Velocity | 625 FPM |
| Media Color | White |
| Media Material | Microfiber |
| Media Separator Construction | Aluminum |
| Nominal Filter Size | 24" x 24" x 12" |
| Performance Rating | MERV 13 |
| Recommended Final Resistance | 1.5 in. wc |
| Removes Particles Down To | 0.3 µmto 1 µm |
| Standards | UL CLASSIFIED |
| Style - Air Filters | Box |
| Ship weight (kg) | 7.99 |
| Ship height (cm) | 67.56 |
| Ship length (cm) | 66.04 |
| Ship width (cm) | 38.86 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Final Recommended Resistance | Initial Resistance | Item | Max. Air Flow | Max. Temp. | Media Area | Nominal Depth | Nominal Filter Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2GGL9 | 1.50" WC | 0.50" WC | Cartridge Filter | 625 fpm | 250 Degrees F | 93 sq. ft. | 12" | 20x24x12 | €239.39 | |
|
2GGN4 | 1.50" WC | 0.50" WC | Cartridge Filter | 625 fpm | 250 Degrees F | 76 sq. ft. | 12" | 20x20x12 | €211.93 | |
 |
2GGN8 | 1.50" WC | 0.50" WC | Cartridge Filter | 625 fpm | 250 Degrees F | 50 sq. ft. | 6" | 24x24x6 | €166.02 | |
 |
2GGP3 | 1.50" WC | 0.50" WC | Cartridge Filter | 625 fpm | 250 Degrees F | 45 sq. ft. | 6" | 20x24x6 | €150.71 | |
 |
2GGP7 | 1.50" WC | 0.50" WC | Cartridge Filter | 625 fpm | 250 Degrees F | 22 sq. ft. | 6" | 12x24x6 | €110.78 | |
|
2GGR2 | 1.50" WC | 0.50" WC | Cartridge Filter | 625 fpm | 250 Degrees F | 37 sq. ft. | 6" | 20x20x6 | €142.13 | |
 |
2GGR6 | 1.50" WC | 0.50" WC | Cartridge Filter | 625 fpm | 250 Degrees F | 105 sq. ft. | 12" | 24x24x12 | €243.16 |
