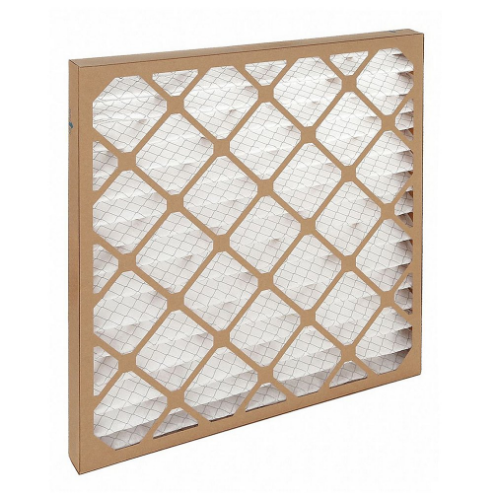

AIR HANDLER 6C518 Standard Capacity Pleated Filter 25x25x2 Merv7
Get it by Tuesday, Jun 17
€16.46 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Standard Cap Pleated Filter |
| Actual Depth | 1 3/4" |
| Actual Height | 24 1/2" |
| Actual Width | 24 1/2" |
| Final Recommended Resistance | 1 in. wc |
| Frame | Yes |
| Frame Material | Chipboard |
| Frame Type | Moisture Resistant Die Cut Chipboard |
| High Initial Resistance | 0.33 in. wc |
| High Velocity | 500 FPM |
| Material Properties | Moisture Resistant Die Cut |
| Max. Temp. | 180°F |
| Max. Velocity | 500 FPM |
| Media Area | 17.3 sq. ft. |
| Nominal Depth | 2" |
| Nominal Filter Size | 25" x 25" x 2" |
| Nominal Height | 25" |
| Nominal Width | 25" |
| Pleats Per Linear Feet | 10 |
| Actual Filter Size | 24 1/2" x 24 1/2" x 1 3/4" |
| Air Filter Capacity | Standard Capacity |
| Air Flow @ 300 Fpm | 1302 CFM |
| Air Flow @ 500 Fpm | 2170 CFM |
| Common Applications | General Use |
| Filter Efficiency - Air Filters | 35% |
| Filter Frame Color | White |
| Filters Out | Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, MERV 5-8 Mold, Pudding Mix, Spores |
| Frame Or Header Material | Beverage Board |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 300 Fpm | 0.22 in. wc |
| Initial Resistance @ 500 Fpm | 0.37 in. wc |
| Media Color | White |
| Media Material | Synthetic |
| Performance Rating (meets Or Exceeds) | MERV 7 |
| Pleats Per Linear Foot | 20 |
| Standards | UL 900 CLASSIFIED |
| Style - Air Filters | Panel |
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 57.66 |
| Ship length (cm) | 65.02 |
| Ship width (cm) | 64.52 |
| HS code | 8421398090 |
| Country of Origin | US |
| Product | Model | Actual Depth | Actual Height | Actual Width | High Initial Resistance | Media Area | Nominal Depth | Nominal Filter Size | Nominal Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
15A725 | 3/4" | 8.75" | 18" | 0.40"WC | 5 sq. ft. | 1" | 8-3/4x18x1 | 8.75" | €15.57 | |
 |
2HYD5 | 1.75" | 19.5" | 29.5" | 0.26"WC | 13.5 sq. ft. | 2" | 20x30x2 | 20" | €14.48 | |
|
35Z756 | 1.75" | 21.375" | 36.5" | 0.30"WC | 24.5 sq. ft. | 2" | 21-1/2x36-1/2x2 | 21.5" | €34.48 | |
 |
5E877 | 3/4" | 21.75" | 21.75" | 0.30"WC | 6.4 sq. ft. | 1" | 22x22x1 | 22" | €13.48 | |
 |
GR5WM724241 | 3/4" | 23.375" | 23.375" | 0.30"WC | 6.4 sq. ft. | 1" | 24x24x1 | 24" | €10.32 | |
 |
5W967 | 3/4" | 7.75" | 15.75" | 0.25"WC | 1.7 sq. ft. | 1" | 8x16x1 | 8" | €13.67 | |
 |
6B989 | 3/4" | 7.75" | 29.75" | 0.25"WC | 2.9 sq. ft. | 1" | 8x30x1 | 8" | €14.70 |
