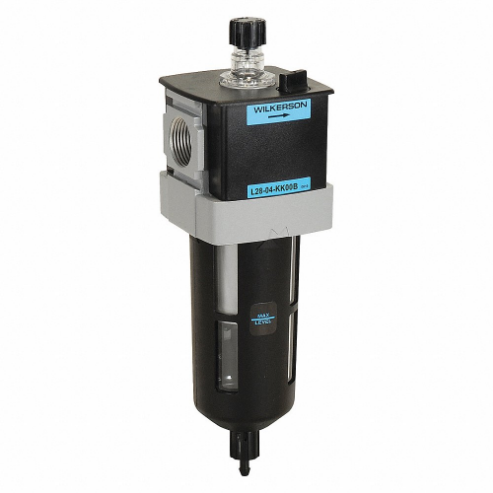

| Item | Air Line Lubricator |
| Adjustment Mechanism | Knob |
| Adjustment Type | Locking Knob, Nonrising |
| Body Material | Aluminum |
| Bowl Material | Plastic |
| Bowl Size | 6 oz. |
| Drain Included | Yes |
| Drain Type | Manual |
| For Fluid Type | Compressed Air |
| For Substance Type | Air |
| Lubricator Bowl Guard Included | Yes |
| Lubricator Type | Micro Mist |
| Material | Polycarbonate |
| Max. Flow Rate | 150 CFM |
| Max. Pressure | 150 psi |
| Max. Temp. | 125°F |
| Modular Connection | Modular Connection |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Oil Capacity | 6 oz. |
| Overall Height | 9 1/5" |
| Overall Length | 9 1/4" |
| Overall Width | 2.9" |
| Pipe Length | 20 ft. |
| Recommended Lubricant | Airline Oil F442001 |
| Seal Material | Nitrile Rubber |
| Sight Dome Included | Yes |
| Sight Gauge Included | Yes |
| System Location | Air Line |
| Air Inlet Size | 3/4" |
| Air Inlet Type | NPT |
| Air Outlet Size | 3/4" |
| Air Outlet Type | NPT |
| Connection Style | Air Line |
| Drain Part Compatbility | LRP-96-702 |
| For Maximum Pipe Run | 20 ft. |
| Includes | Bowl and Guard, Drain, Over-port |
| Inlet Size | 3/4" NPT |
| Lubricator Bowl Capacity | 6 oz. |
| Lubricator Bowl Guard Material | ABS |
| Lubricator Bowl Material | Plastic |
| Maximum Flow Rate | 150 CFM |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 125°F |
| Minimum Operating Temperature | 14°F |
| Overall Depth | 2 7/8" |
| Pressure Drop | 4.9 psi |
| Series | L28 Series |
| Weight | 1.04 lbs. |
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 23.34 |
| Ship length (cm) | 7.3 |
| Ship width (cm) | 7.3 |
| Country of Origin | KR |
| Product | Model | Body Material | Bowl Material | Bowl Size | Height | Material | Max. Flow | Max. Pressure | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SL2-04-LLV0 | Stainless Steel | Stainless Steel | 4.0 oz. | 6.81" | Stainless Steel | 100 cfm | 300 psi | 150 F | €1,796.72 | |
 |
L40-0B-000 | Zinc | Polycarbonate w/Guard | 26.0 Oz. | 11.61" | - | 927 CFM | 150 psi | 125 F | €489.29 |
