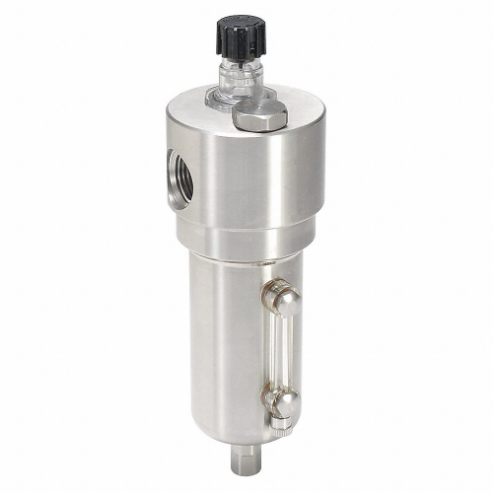

| Item | Air Line Lubricator |
| Adjustment Mechanism | Screwdriver |
| Adjustment Type | Screwdriver |
| Body Material | Stainless Steel |
| Bowl Material | Stainless Steel |
| Bowl Size | 4 oz. |
| Dome | Integral Sight |
| Dome Material | Nylon |
| Drain Included | Yes |
| For Fluid Type | Compressed Air |
| For Substance Type | Air |
| Height | 6.81" |
| Includes | Drain |
| Knob | Adjustment |
| Length | 2.38" |
| Lubricator Type | Mist |
| Material | Stainless Steel |
| Max. Flow Rate | 100 CFM |
| Max. Pressure | 300 psi |
| Max. Temp. | 150°F |
| Npt | 1/2" |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Oil Capacity | 4 oz. |
| Overall Height | 7.62" |
| Overall Length | 2 13/25" |
| Overall Width | 2 9/25" |
| Pipe Runs | 25 ft. |
| Seal Material | Fluorocarbon |
| Sight Dome Included | Yes |
| Sight Gauge Included | Yes |
| System Location | Air Line |
| Width | 2.38" |
| Air Inlet Size | 1/2" |
| Air Inlet Type | NPT |
| Air Outlet Size | 1/2" |
| Air Outlet Type | NPT |
| Connection Style | Air Line |
| Drain Part Compatbility | SAP05481, SRP-96-008 |
| For Maximum Pipe Run | 25 ft. |
| Inlet Size | 1/2" NPT |
| Lubricator Bowl Capacity | 4 oz. |
| Lubricator Bowl Material | Stainless Steel |
| Maximum Flow Rate | 100 CFM |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Pressure | 0 psig |
| Minimum Operating Temperature | 0°F |
| Overall Depth | 2 3/8" |
| Pressure Drop | 5 psi |
| Series | SL2 Series |
| Standards | NACE MR-01-75/ISO 15156 |
| Weight | 1.9 lbs. |
| Ship weight (kg) | 1.12 |
| Ship height (cm) | 19.37 |
| Ship length (cm) | 6.03 |
| Ship width (cm) | 6.03 |
| HS code | 8481100040 |
| Country of Origin | US |
| Product | Model | Body Material | Bowl Material | Bowl Size | Height | Material | Max. Flow | Max. Pressure | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
L40-0B-000 | Zinc | Polycarbonate w/Guard | 26.0 Oz. | 11.61" | - | 927 CFM | 150 psi | 125 F | €489.29 |
