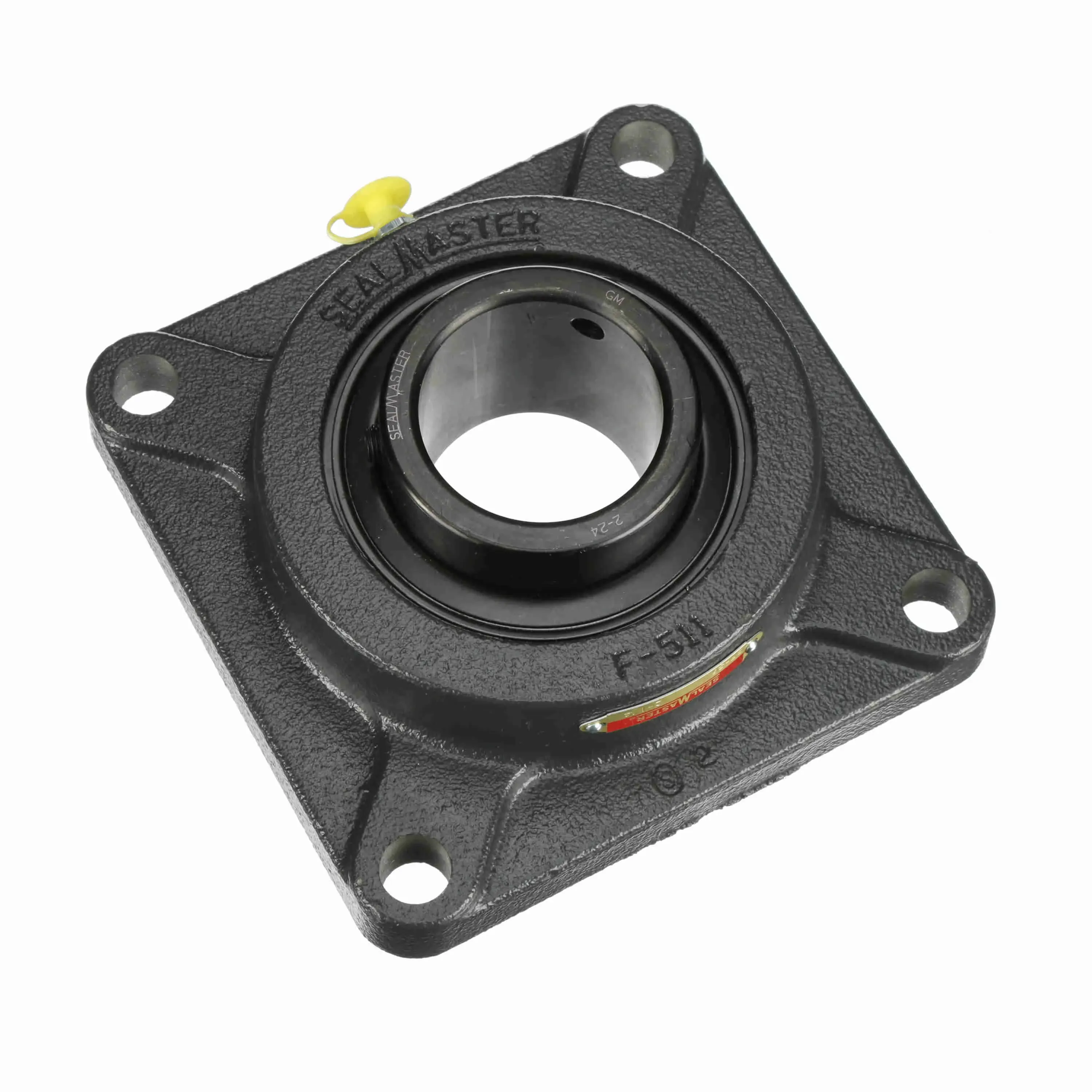

| Item | Bearing |
| Back Side To Center Width | 1.14" |
| Bore Dia. | 2 1/4" |
| Bore Type | Cylindrical |
| Closure Type | Double Sealed |
| Dynamic Load Capacity | 11789 lbf. |
| Features | Available With High Temperature Bearings, Wide Inner Ring Bearing |
| Flange Thickness | 0.719" |
| Housing Material | Cast Iron |
| Housing Material Finish | Black Oxide |
| Housing Type | Square |
| Included Bearing | UC212-36 |
| Includes | Set Screw |
| Insert Material | Alloy Steel |
| Insert Type | Radial Ball |
| Lubricant Material Class | NLGI#2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Max. Speed | 3000 RPM |
| Max. Temp. | 220°F |
| Min. Temp. | -20°F |
| Mount Hole Center-to-center Height | 5 5/8" |
| Mount Hole Center-to-center Length | 5 5/8" |
| Mount Hole Size | 0.672" |
| Mounting Bolt Size | 5/8" |
| Number Of Mounting Holes | 4 |
| Overall Height | 6 7/8" |
| Overall Length | 6 7/8" |
| Overall Width | 2.562" |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Seal Type | Contact |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Set Screws |
| Static Radial Load Capacity | 8150 lbf. |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 5/8" |
| Bolt Spacing | 5 5/8" |
| Bore Diameter | 2 1/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Closure | Double Sealed |
| End Cap | No |
| Expansion Type | Fixed |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.81" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Backside Inner Diameter | 5" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.981" |
| Insert | 2-24 |
| Length Through Bore | 2.559" |
| Lubricant Material | NLGI #2 Equivalent |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Maximum Speed | 3000 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Number Of Mount Holes | 4 |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.688" |
| Overall Width | 6 22/25" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Setscrew Torque | 250 lbs.-in. to 300 lbs.-in. |
| Size Code | 2-27 |
| Static Load Rating | 8150 lbs. |
| Ship weight (kg) | 5.28 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 18.26 |
| Ship width (cm) | 8.41 |
| Country of Origin | US |
