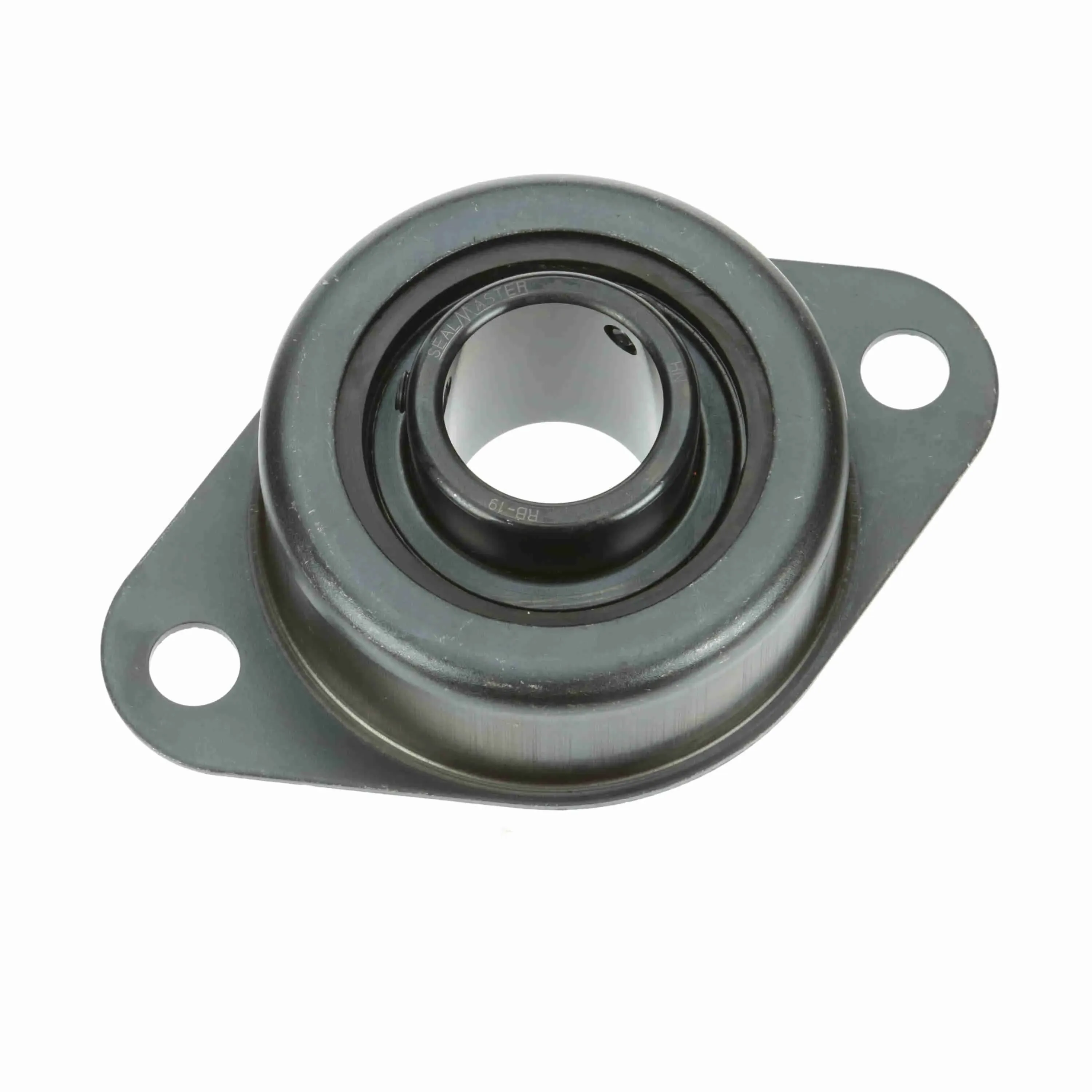

| Item | Bearing |
| Bore Dia. | 1.188" |
| Bore Type | Cylindrical |
| Closure Type | Double Sealed |
| Dynamic Load Capacity | 4381 lbf. |
| Features | Lock Pin And Dimple For Direct Lubrication And Anti-Rotation |
| Housing Material | Steel |
| Housing Material Finish | Black Oxide |
| Housing Material Grade | 52100 |
| Housing Type | Rhombus |
| Includes | Set Screw |
| Insert Material | Alloy Steel |
| Insert Type | Radial Ball |
| Lubricant Material Class | NLGI#2 Equivalent |
| Lubrication Openings | None |
| Max. Speed | 5450 RPM |
| Max. Temp. | 220°F |
| Min. Temp. | -20°F |
| Mount Hole Center-to-center Height | 4 3/8" |
| Mount Hole Center-to-center Length | 4 3/8" |
| Mount Hole Size | 1/2" |
| Mounting Bolt Size | 0.438" |
| Number Of Mounting Holes | 2 |
| Overall Height | 1.656" |
| Overall Length | 5 3/8" |
| Overall Width | 3 1/2" |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Seal Type | Contact |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Set Screws |
| Static Radial Load Capacity | 2567 lbf. |
| Ability To Relubricate | No |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 7/16" |
| Bolt Spacing | 4 3/8" |
| Bore Diameter | 1 3/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Closure | Double Sealed |
| End Cap | No |
| Expansion Type | Fixed |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 2/25" |
| Housing Color | Silver |
| Housing Construction | One Piece |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.587" |
| Insert | SRC-19 |
| Length Through Bore | 1 5/8" |
| Lubricant Material | NLGI #2 Equivalent |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Maximum Speed | 5450 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Number Of Mount Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.667" |
| Overall Width | 3 1/4" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Setscrew Torque | 85 lbs.-in. |
| Size Code | 2-13 |
| Static Load Rating | 2567 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0385 cPS |
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 14.61 |
| Country of Origin | US |
