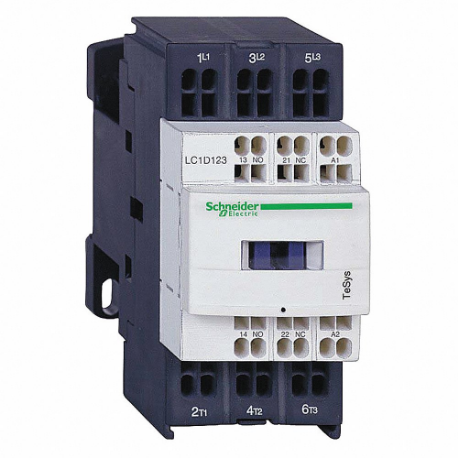

| Item | IEC Magnetic Contactor |
| Application | Motor Control, Resistive Load |
| Aux. Contact Configuration | 1NO/1NC |
| Coil Volts | 24V DC |
| Depth | 3.74" |
| Embedded Surge Suppressor | Yes |
| Enclosure Nema Rating | No Enclosure |
| Features | With Integral Suppression Device |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 12A |
| Full Load Amps-resistive | 16A |
| Height | 3.9" |
| Horsepower @ Three Phase (600 Vac) | 10 hp |
| Horsepower @ Three Phase - 480v Ac | 7 1/2 hp |
| Hp @ 1 Phase - 120v | 1/2 hp |
| Hp @ 1 Phase - 240v | 2 hp |
| Hp @ 3 Phase - 208v | 3 hp |
| Hp @ 3 Phase - 240v | 3 hp |
| Hp @ 3 Phase - 480v | 7 1/2 hp |
| Hp @ 3 Phase - 575v | 10 hp |
| Impulse Withstand Voltage | 6 kV |
| Includes Auxiliary Contacts | Yes |
| Includes Protective Cover | Yes |
| Mounts On | Plate, Rail |
| Non-overlap Time | 1.5 ms |
| Number Of Auxillary Contacts | 2 |
| Number Of Normally Open Main Contacts | 3 |
| Number Of Poles | 3 |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Reversible | No |
| Terminal Connection Type | Spring Loaded Terminals |
| Width | 1.77" |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 24V DC |
| Contactor Style | IEC |
| Electrical Operating Durability | 2000000, 800000 |
| Full Load Current - Inductive | 12A |
| Full Load Current - Resistive | 16A |
| Horsepower @ Single Phase - 120v Ac | 1/2 hp |
| Horsepower @ Single Phase - 240v Ac | 2 hp |
| Horsepower @ Three Phase - 208v Ac | 3 hp |
| Horsepower @ Three Phase - 240v Ac | 3 hp |
| Horsepower @ Three Phase - 600v Ac | 10 hp |
| Integrated Surge Suppression | Yes |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 3NO |
| Maximum Operating Temperature | 140°F |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 30000000 |
| Minimum Operating Temperature | -40°F |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 24V DC |
| Overall Depth | 3.74" |
| Overall Height | 3.9" |
| Overall Width | 1.77" |
| Phase | Three |
| Reversing Capability | Non-Reversing |
| Series | TeSys Deca |
| Standards | BV, CCC, CSA, CSA C22.2 NO 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL LISTED |
| Wire Termination Type | Spring Loaded |
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 9.91 |
| Ship length (cm) | 9.5 |
| Ship width (cm) | 4.5 |
| Country of Origin | ID |
