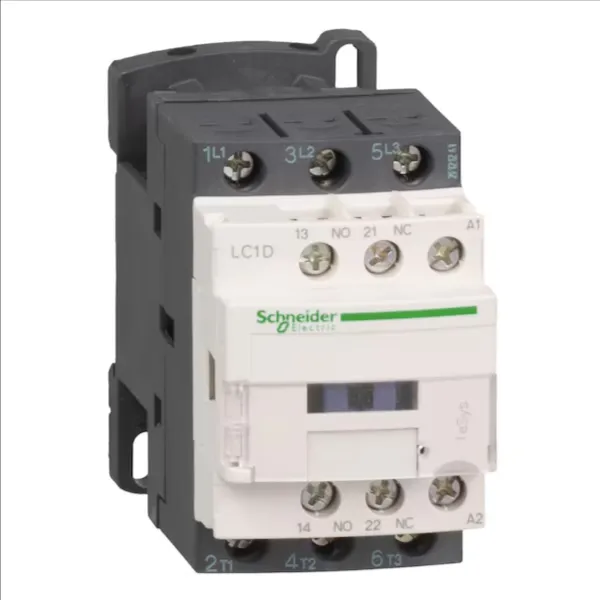

| Item | IEC Magnetic Contactor |
| Application | Motor Control, Resistive Load |
| Coil Volts | 48V |
| Depth | 86 mm |
| Features | Without Built-In Suppressor Module |
| Full Load Amps-inductive | 18A |
| Full Load Amps-resistive | 32A |
| Height | 77 mm |
| Hp @ 1 Phase - 240v | 3 hp |
| Hp @ 3 Phase - 208v | 5 hp |
| Hp @ 3 Phase - 240v | 5 hp |
| Hp @ 3 Phase - 480v | 10 hp |
| Hp @ 3 Phase - 575v | 15 hp |
| Impulse Withstand Voltage | 6 kV |
| Includes Protective Cover | Yes |
| Inrush Va | 70 VA |
| Mounts On | Plate, Rail |
| Non-overlap Time | 1.5 ms |
| Number Of Poles | 3 |
| Product Or Component Type | Contactor |
| Protective Cover | With |
| Tightening Torque | 1.7 N-m |
| Width | 45 mm |
| Coil Voltage | 48V AC |
| Full Load Current (a) - Inductive | 18A |
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 7.7 |
| Ship length (cm) | 8.6 |
| Ship width (cm) | 4.5 |
| Country of Origin | ID |
