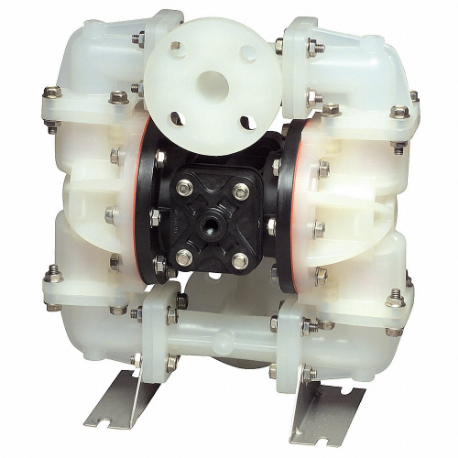

| Item | Double Diaphragm Pump |
| Air Consumption | 20 SCFM |
| Air Consumption (maximum) | 20 SCFM |
| Air Intake Connection Size | 1/4" |
| Air Intake Connection Type | Flange |
| Air Intake Pressure (maximum) | 100 psi |
| Center Section Material | Polypropylene |
| Check Seat Material | PVDF |
| Connection Size | 1" |
| Connection Style | Flange |
| Connection Type | Flanged |
| Diaphragm Material | Santoprene |
| Display Qty | 1 |
| Feet Of Head (maximum) | 231 ft. |
| Flow Rate (maximum) | 23 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 23 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 11.5 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 16.3 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 19.5 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 21.6 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| For Use With Potable Systems | No |
| Housing Material | PVDF |
| Includes | Pump |
| Inlet Size | 1/4" |
| Inlet Type | Flanged |
| Inlet/outlet Size | 1" |
| Manifold Connection | Single Port |
| Manifold Connection Type | Flange , Flanged |
| Max. Dia. Solids | 0.15" |
| Max. Flow Rate | 23 GPM |
| Max. Head | 231 ft. |
| Max. Media Temp. | 250°F |
| Max. Outlet Pressure | 100 psi |
| Max. Solid Dia. | 0.15" |
| Media Discharge Connection Size | 1" |
| Media Discharge Connection Type | Flange |
| Media Discharge Location | Center, Top |
| Media Intake Connection Size | 1" |
| Media Intake Connection Type | Flange |
| Media Intake Location | Bottom, Center |
| Min. Media Temp. | -40°F |
| Non-wetted Housing Material | Polypropylene |
| Operating Pressure (maximum) | 100 psi |
| Operation Type | Air Operated |
| Overall Height | 13 4/5" |
| Overall Length | 7 3/5" |
| Overall Width | 11 4/5" |
| Power Source | Air |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Rated Air Pressure | 100 psi |
| Self Priming | Yes |
| Self-priming Dry | 9 ft. |
| Self-priming Wet | 9 ft. |
| Solid Diameter (maximum) | 0.15" |
| Valve Material | Santoprene |
| Valve Type | Ball |
| Air Inlet | 1/4" Flange |
| Chemical Compatibility | Alcohol, Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Potassium Hydroxide 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Water |
| Fluid Discharge Connection | 1" Flange |
| Fluid Intake Connection | 1" Flange |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 100 psi |
| Max. Feet Of Head | 231 ft. |
| Max. Media Temperature | 250°F |
| Min. Media Temperature | -40°F |
| Priming | Self Priming |
| Series Family | S10 |
| Standards | ABS TYPE APPROVED, CE CERTIFIED, EAC, ISO |
