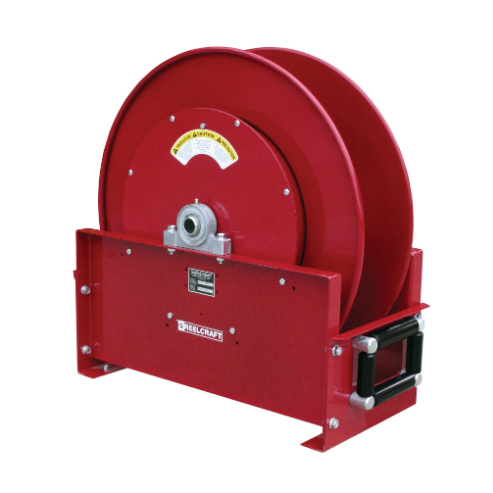

REELCRAFT FE9400 OLPBW Hose Reel, Inner Diameter 1 Inch, 500 Psi, Hose Length 50 Feet
Get it by Wednesday, Jun 18
€1,073.28 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Hose Reel |
| Guide Roller Position | Bottom Wind |
| Hose | No |
| Hose Inside Dia. | 1" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 1 1/2" |
| Max. Pressure | 500 psi |
| Max. Temp. | 210°F |
| Mounting | Ceiling, Floor, Wall |
| Pressure | 500 psi |
| Weight | 115 lbs. |
| Ship weight (kg) | 51.75 |
| Ship height (cm) | 73.66 |
| Ship length (cm) | 71.12 |
| Ship width (cm) | 34.29 |
,Reelcraft’s spring retractable fuel delivery hose reels, equipped with Viton seals, incorporate metal forms to ensure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85. Series FE9000 reels are supplied with our ball-bearing style swivel. Contact Reelcraft for top wind and side wind hose guide models. ,NOTE:, Not recommended for jet fuel., , ,Substantial base frame – The full-width frame has the greatest amount of mounting area and overall strength of reels within its class., ,Full flow stress-free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life., ,Quality finish and corrosion resistance – Individually powder-coated components offer the maximum protection from premature corrosion., ,The reel is shipped in the bottom wind position with a right-hand inlet., ,Made in USA, , ,NOTE:, Reelcraft Series 9000 reels only ship LTL. Small parcel shipments are not available for this model.,
| Product | Model | Hose | Hose Ends | Hose I.d. | Hose Outside Dia. | Inlet | Max. Temp. | Outlet | Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FD9300 OLPBW | No | - | 3/4" | 1.188" | 3/4" NPT(F) | 210 Deg.F | 3/4" NPT(F) | 50 psi | - | RFQ
|
|
FE9300 OLPBW | No | - | 3/4" | 1.188" | 3/4" NPT(F) | 210 Deg.F | 3/4" NPT(F) | 500 Psi | €1,043.83 | |
 |
FE9350 OLPBW | Yes | 3/4" NPT(M) | 3/4" | 1.188" | 3/4" NPT(F) | 150 Deg.F | 3/4" NPT(F) | 50 psi | €1,538.46 | |
|
FD9400 OLPBW | No | - | 1" | 1.5" | 1" NPT(F) | 210 Deg.F | 1" NPT(F) | 500 Psi | - | RFQ
|
 |
FD9350 OLPBW | Yes | 3/4" NPT(M) | 3/4" | 1.188" | 3/4" NPT(F) | 150 Deg.F | 3/4" NPT(F) | 500 Psi | - | RFQ
|
|
FD9450 OLPBW | Yes | 1" NPT(M) | 1" | 1.5" | 1" NPT(F) | 150 Deg.F | 1" NPT(F) | 50 psi | - | RFQ
|
 |
FE9450 OLPBW | Yes | 1" NPT(M) | 1" | 1.5" | 1" NPT(F) | 150 Deg.F | 1" NPT(F) | 50 psi | €1,687.46 |
