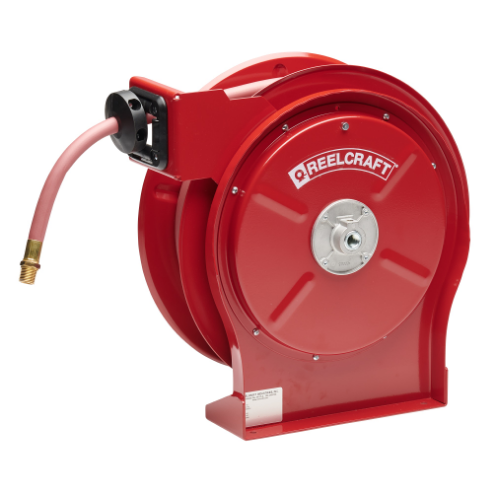

REELCRAFT A5850 OLP Hose Reel, Inner Diameter 1/2 Inch, 300 Psi, Hose Length 50 Feet
Get it by Tuesday, Jun 17
€479.90 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hose Reel |
| Hose | Yes |
| Hose Inside Dia. | 1/2" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 3/4" |
| Max. Pressure | 300 psi |
| Max. Temp. | 150°F |
| Mounting | Ceiling, Floor, Wall |
| Pressure | 300 psi |
| Speed Limited Retraction | No |
| Swivel Material | Brass |
| Weight | 41 lbs. |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Enclosed | No |
| Fasteners Included | No |
| Features | Premium Duty |
| Fitting Gender | Male x Male |
| Fitting Size | 1/2" x 1/2" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Hose Capacity | 50 ft. (1/2" I.D.) |
| Hose Color | Red |
| Hose Cover Material | PVC |
| Hose End Configuration | 1/2" MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size | 1/2" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size | 1/2" |
| Hose Fitting B Type | NPT |
| Hose Reel Primary Application | Air, Water |
| Hose Reel Type | Ceiling, Floor, Vehicle, Wall Mount Hose Reel |
| Hose Tube Material | PVC |
| Includes | Hose, Bumper |
| Includes Hose | Yes |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch Type | Spring Loaded |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Temperature | 32°F |
| Mount Base Height | 18-41/64" |
| Mount Base Width | 4" |
| Mount Hole Diameter | 5/16" |
| Mounting Hole Center To Center Height | 9 3/4" |
| Mounting Hole Center To Center Width | 2 1/2" |
| Number Of Guide Arms | 1 |
| Number Of Mount Holes | 4 |
| Overall Dimensions | 16 3/4" L x 7 1/4" W x 17 5/8" H |
| Overall Height | 17 5/8" |
| Overall Length | 16 3/4" |
| Overall Width | 7 1/4" |
| Pedestal Type | Single Pedestal |
| Reel Color | Red |
| Reel Diameter | 7" |
| Reel Finish | Powder Coated |
| Reel Material | Carbon Steel |
| Reel Width | 7 1/4" |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/8" |
| Swivel Inlet Thread Size | 1/2"-14 |
| Swivel Inlet Type | NPT |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 1/2" |
| Swivel Outlet Thread Size | 1/2"-14 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 51.12 |
| Ship length (cm) | 51.44 |
| Ship width (cm) | 19.05 |
,Series 5005 reels are durable and compact for a wide range of applications with critical space requirements., , ,Hose is plumbed into the base to eliminate the risk of undue stress on the swivel, ,The bent tube swivel design offers a smooth hose transition onto the spool, ,Swivel is nested inside the spool for protection from impact and the environment, ,The reliable speed latch allows for positive locking of the spool in two positions per rotation, ,All steel components are powder coated for maximum corrosion resistance, ,Robotically welded steel base offers maximum strength and consistent quality, ,Made in the USA, , ,*Reel is shipped in the top wind position. The reel image is shown in the side wind position.,
| Product | Model | Bearings | Duty Rating | Hose | Hose Ends | Hose I.d. | Hose Inside Dia. | Hose Length | Hose Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5650 OLPSMR 1 | Greaseless | Industrial | - | 1/4" (M)NPT | Yes | 3/8" | 50ft. | PVC | €602.91 | |
|
A5850 OLPSMR 1 | Greaseless | Industrial | - | 1/2" (M)NPT | Yes | 1/2" | 50ft. | PVC | - | RFQ
|
 |
5650 OLP1 | Permanently Lubricated | Industrial | - | 1/4" (M)NPT x 3/8" (M)NPT | Yes | 3/8" | 50ft. | PVC | €586.23 | |
 |
5605 OLP1 | Permanently Lubricated | Industrial | - | - | No | 3/8" | 50ft. | - | €362.96 | |
 |
A5850 OLP-RH | Permanently Lubricated | Medium Duty | - | 1/2" (M)NPT | - | 1/2" | 50ft. | Rubber | - | RFQ
|
 |
B5835 OLP | - | - | Yes | 1/2" NPT(M) | 1/2" | - | 35ft. | - | - | RFQ
|
 |
B5850 OLP | - | - | Yes | 1/2" NPT(M) | 1/2" | - | 50ft. | - | - | RFQ
|
