REELCRAFT DP7850 OLP Dual Pedestal Hose Reel, Inner Diameter 1/2 Inch, 300 Psi, Hose Length 50 Feet | AM6YZY

REELCRAFT DP7850 OLP Dual Pedestal Hose Reel, Inner Diameter 1/2 Inch, 300 Psi, Hose Length 50 Feet

Item: AM6YZYModel: DP7850 OLP
In Stock

Get it by Tuesday, Jun 17

€654.02 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

ItemHose Reel
HoseYes
Hose Inside Dia.1/2"
Hose Length50 ft.
Hose Outside Dia.3/4"
Max. Pressure300 psi
Max. Temp.210°F
MountingCeiling, Floor, Wall
Pressure300 psi
Speed Limited RetractionNo
Swivel MaterialSteel
Weight53 lbs.

Shipping Info:

Ship weight (kg) 23.85
Ship height (cm)49.53
Ship length (cm)46.99
Ship width (cm)25.4

Product Details:

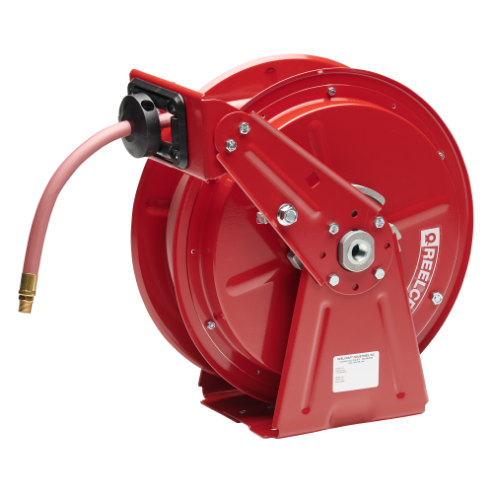

,Reelcraft's compact, dual pedestal Series DP7000 hose reel features an innovative, non-welded, interlocking base. Independent testing to military standards has proven the reel stand up to heavy vibration, which makes them especially strong and ideal for truck-mounted applications. Superbly engineered dual pedestal base and guide arm are structurally reinforced. All-steel construction and a baked-on powder coat finish combine to produce a rugged corrosion-resistant product suitable for a wide variety of heavy-duty applications., , ,Reinforced steel – Steel guide arm and dual pedestal base are stamped with ribs and gussets to ensure maximum strength and lightest possible weight. The interlocking base eliminated the need for welds increasing the strength while utilizing fewer parts., ,Superior latch spring design – The life of the torsion style latch spring far exceeds that of conventional coil springs., ,Long life drive spring – Declutching arbor eliminates reverse spring winding, and torsion latch spring is virtually unbreakable. High-quality spring steel is used and conditioned to ensure there are no imperfections offering maximum service life., ,

Product Variants

ProductModelHoseHose EndsHose I.d.Hose Inside Dia.Hose MaterialHose Outside Dia.Max. PressureMax. Temp.Price
REELCRAFT DP7650 OLP1 Hose Reel 3/8 Inch 50 Feet Length 300 Psi 150f | AB9DFX 2CAG5 DP7650 OLP1-1/4" (M)NPTYes3/8"PVC-300 psi150 Degrees F€631.50
REELCRAFT DP7850 OLP1 Hose Reel 1/2 Inch 50 Feet Length 300 Psi 150f | AB9DFY 2CAG6 DP7850 OLP1-3/8" (M)NPTYes1/2"PVC-300 psi150 Degrees F€654.02
REELCRAFT DP7850 OMP1 Hose Reel 1/2 Inch 50 Feet Length 2000 Psi | AB9DFZ 2CAG7 DP7850 OMP1-1/2" (M)NPTYes1/2"SAE 100 R1 T-2,000 psi210 Degrees F€855.86
REELCRAFT DP7650 OHP1 Hose Reel 3/8 Inch 50 Feet Length 4000 Psi | AB9DGA 2CAG8 DP7650 OHP1-1/4" (M)NPT x 1/2" (M)NPTYes3/8"SAE 100 R2 T-4,000 psi210 Degrees F€937.28
REELCRAFT DP7850 OLP121 Dual Pedestal Hose Reel, Inner Diameter 1/2 Inch, 300 Psi, Hose Length 50 Feet | BT7JLR DP7850 OLP121Yes1/2" NPT(M)1/2"--0.75"-210 Deg.F-
RFQ
REELCRAFT DP7400 OHP Dual Pedestal Hose Reel, Inner Diameter 1/4 Inch, 5000 Psi, Hose Length 50 Feet | BT6DGE DP7400 OHPNo-1/4"--0.58"-210 Deg.F-
RFQ
REELCRAFT DP7450 OLP Dual Pedestal Hose Reel, Inner Diameter 1/4 Inch, 300 Psi, Hose Length 50 Feet | BT6DGG DP7450 OLPYes1/4" NPT(M)1/4"--0.475"-210 Deg.F-
RFQ
