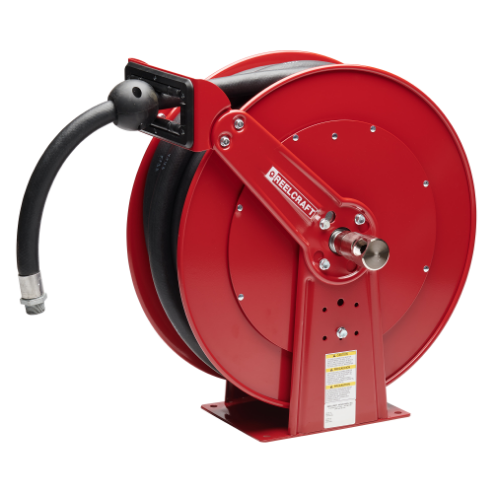

REELCRAFT FD84050 OLP Hose Reel, Inner Diameter 1 Inch, 50 Psi, Hose Length 50 Feet
Get it by Tuesday, Jun 17
€1,249.13 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hose Reel |
| Hose | Yes |
| Hose Inside Dia. | 1" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 1 1/2" |
| Max. Temp. | 150°F |
| Mounting | Ceiling, Floor, Wall |
| Pressure | 50 psi |
| Speed Limited Retraction | No |
| Swivel Material | Steel |
| Weight | 115 lbs. |
| Ship weight (kg) | 51.75 |
| Ship height (cm) | 70.17 |
| Ship length (cm) | 69.85 |
| Ship width (cm) | 34.61 |
,Reelcraft’s spring retractable fuel delivery hose reels, equipped with Viton seals, incorporate metal forms to ensure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85. Series FD80000 reels are supplied with our ball-bearing style swivel. ,NOTE:, Not recommended for jet fuel., , ,Robust latching mechanism – Latch and ratchet are made of heavy-duty cast aluminum with substantial surface area to limit the opportunity for premature wear., ,Full flow stress free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life., ,Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion., ,Made in USA, , ,NOTE:, Reelcraft Series 80000 reels only ship LTL. Small parcel shipments are not available for this model.,
| Product | Model | Hose | Hose Ends | Hose I.d. | Hose Length | Hose Outside Dia. | Inlet | Max. Temp. | Outlet | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
F83050 OLP1 | - | 3/4" (M)NPT | Yes | 50ft. | - | - | 150 Degrees F | - | €1,132.19 | |
 |
FD83000 OLP1 | - | 3/4" FNPT | No | 75ft. | - | - | 150 Degrees F | - | €932.09 | |
 |
F83050 OLP | Yes | 3/4" NPT(M) | 3/4" | 50ft. | 1.188" | 3/4" NPT(F) | 150 Deg.F | 3/4" NPT(F) | €1,132.19 | |
 |
F83000 OLP | No | - | 3/4" | 50ft. | 1.188" | 3/4" NPT(F) | 210 Deg.F | 3/4" NPT(F) | €758.84 | |
|
FD84000 OLP | No | - | 1" | 50ft. | 1.5" | 1" NPT(F) | 210 Deg.F | 1" NPT(F) | €880.11 | |
|
FD83075 OLP | Yes | 3/4" NPT(M) | 3/4" | 75ft. | 1.188" | 3/4" NPT(F) | 150 Deg.F | 3/4" NPT(F) | €1,431.05 | |
|
FD84035 OLP | Yes | 1" NPT(M) | 1" | 35ft. | 1.5" | 1" NPT(F) | 150 Deg.F | 1" NPT(F) | €1,224.01 |
