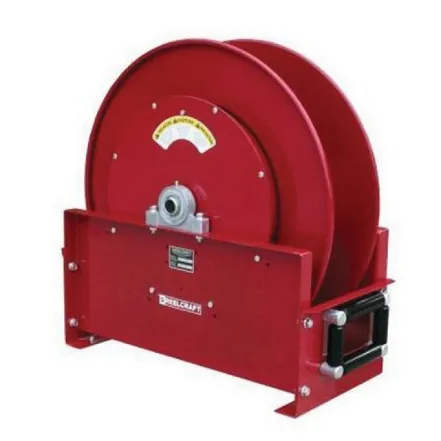

REELCRAFT D9400 OLPBW Hose Reel, Inner Diameter 1 Inch, 500 Psi, Hose Length 50 Feet

Item: BT7FJA Model: D9400 OLPBW
€1,258.85 /unit
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemHose Reel
Guide Roller PositionBottom Wind
HoseNo
Hose I.D.1"
Hose Length50ft.
Hose Outside Dia.1.375"
Inlet1" NPT(F)
Max. Temp.210 Deg.F
Outlet1" NPT(F)
Pressure500 Psi
Weight115 Lbs.

Product Details:

,Reelcraft’s Series D9000 hose reels offer the greatest amount of stability. Ideal for permanent service or plant work areas. A durable baked-on powder coat finish produces a rugged corrosion-resistant product suitable for a wide variety of heavy-duty applications. Contact Reelcraft for top wind and side wind hose guide conversion kits. *Includes non-greaseable bushings/bearings; not intended for mobile applications., , ,Substantial base frame – The full-width frame has the greatest amount of mounting area and overall strength of reels within its class., ,Full flow stress-free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life., ,Robust latching mechanism – The latch and ratchet are made of heavy-duty cast aluminum with substantial surface area to limit the opportunity for premature wear., ,Reels are shipped in the bottom wind position with a right-hand inlet., ,Made in the USA, , ,NOTE:, Reelcraft Series 9000 reels only ship LTL. Small parcel shipments are not available for this model.,

Product Variants

ProductModelHose LengthBearingsDuty RatingHose Outside Dia.Housing MaterialInletLatchMax. PressurePrice
REELCRAFT URD9350 OLBBW 1 Hose Reel 3/4 Inch 50 Feet Length 300 Psi 150f | AA4MBH 12U318 URD9350 OLBBW 150ft.GreaselessHeavy Dual Pedestal, Industrial-Steel-Standard300 psi€2,362.50
REELCRAFT D9399 OLPBW1 Hose Reel 3/4 Inch 100 Feet Length 250 Psi | AB9DGC 2CAH6 D9399 OLPBW1100ft.Permanently Lubricated----Vibration Proof, Self Locking250 psi€2,058.81
REELCRAFT D9450 OLPBW1 Hose Reel 1 Inch 50 Feet Length 250 Psi 150f | AB9DGD 2CAH7 D9450 OLPBW150ft.Permanently Lubricated----Vibration Proof, Self Locking250 psi€1,746.47
REELCRAFT D9375 OLPBW1 Hose Reel 3/4 Inch 75 Feet Length 250 Psi 150f | AD8VYE 4NA94 D9375 OLPBW175ft.Permanently Lubricated----Vibration Proof, Self Locking250 psi€1,613.81
REELCRAFT D9300 OLSBW1 Hose Reel 3/4 Inch 75 Feet Length 500 Psi 210f | AD8WFH 4NB29 D9300 OLSBW175ft.Permanently LubricatedHeavy Duty-Stainless Steel-Vibration Proof, Self Locking500 psi€3,469.29
REELCRAFT D9399 OLPBW Hose Reel, Inner Diameter 3/4 Inch, 250 Psi, Hose Length 100 Feet | AY9WVQ D9399 OLPBW100ft.--1.075"-3/4" NPT(F)--€1,951.09
REELCRAFT E9100 OHPBW Ultimate Duty Hose Reel, 3/8 Inch x 75 Feet | BT6DHA E9100 OHPBW75ft.--0.73"-1/2" NPT(F)--€1,787.31
