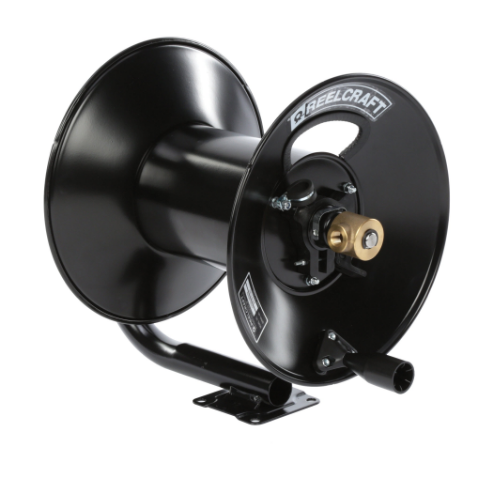

REELCRAFT CT6050LN Hand Crank Hose Reel, Inner Diameter 1 Inch, 300 Psi, Hose Length 50 Feet
Get it by Tuesday, Jun 17
€300.59 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hand Crank Hose Reel |
| Hose | No |
| Hose Inside Dia. | 3/8" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 3/5" |
| Max. Temp. | 150°F |
| Pressure | 300 psi |
| Weight | 13 lbs. |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Drive Type | Hand Crank |
| Enclosed | No |
| Fasteners Included | No |
| Features | Designed For Lighter Duty Applications That Require Longer Lengths of Low Pressure Air Hose |
| For Dual Hose | No |
| Handle Length | 3 1/8" |
| Hose Capacity | 50 ft. (3/8" I.D.) |
| Hose Reel Primary Application | Air, Garden, Pre-Rinse, Washdown, Water |
| Hose Reel Type | Free Standing Hose Reel, Vehicle Mount Hose Reel, Wall Mount Hose Reel |
| Includes | Instructions |
| Includes Gooseneck | No |
| Includes Hose | No |
| Includes Leader Hose | No |
| Latch Type | Spring Loaded |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Temperature | -40°F |
| Mount Base Height | 4 1/4" |
| Mount Base Width | 4 1/4" |
| Mount Hole Diameter | 7/16" |
| Mounting Hole Center To Center Height | 3 1/2" |
| Mounting Hole Center To Center Width | 3 1/2" |
| Number Of Mount Holes | 4 |
| Overall Dimensions | 13 1/4" L x 15 1/2" W x 15 5/8" H |
| Overall Height | 15 5/8" |
| Overall Length | 13 1/4" |
| Overall Width | 15 1/2" |
| Reel Color | Black |
| Reel Diameter | 6" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 4" |
| Seal Material | Nitrile |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/2" |
| Swivel Inlet Thread Size | 1/2"-14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1/2" |
| Swivel Outlet Thread Size | 1/2"-14 |
| Swivel Outlet Type | NPT |
| Ship weight (kg) | 5.85 |
| Ship height (cm) | 39.69 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 39.37 |
,Reelcraft’s Series C hose reels are designed for lighter-duty applications that require longer lengths of low pressure air or water hose. Hand crank with a balanced brass swivel and brass inlet, the Series C is the product of lighter weight components and forward-thinking design. Reels in this family benefit from a tough, corrosion-resistant powder coat paint. All reels feature a drag break to prevent de-spooling when reel is not in use. The Series C is an economical choice for storing and retrieving hose., , ,Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion., ,Low cost – The simple and effective design allows the economical storage and retrieval of hose., ,Easy to operate – The rotating handle allows the hose to be retrieved with ease., ,Tubular design – The inlet is fed through the center of the tube frame, protecting the inlet hose and creating a cleaner look over all., ,
| Product | Model | Color | Drive Type | Hose Ends | Hose I.d. | Hose Length | Hose Outside Dia. | Inlet | Item | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT6050HN 1 | Black | Hand Crank | 3/8" (M)NPTF | N | 50ft. | - | - | Hose Reel | €392.41 | |
|
CT6100HN 1 | Red | Hand Crank | 3/8" (M)NPT | N | 100ft. | - | - | Hose Reel | €401.94 | |
 |
CTJ6200HN | Black | Hand | - | - | 200ft. | 3/4" | - | Hand Crank Hose Reel | - | RFQ
|
 |
CM6100HN | - | - | - | - | - | - | - | Hand Crank Hose Reel | - | RFQ
|
 |
CM6050HN | - | - | - | - | - | - | - | Hand Crank Hose Reel | - | RFQ
|
 |
CT8050LN | - | - | - | 1/2" | 50ft. | 0.75" | 1/2" NPT(F) | Hand Crank Hose Reel | - | RFQ
|
 |
CT6100LN | - | - | - | 3/8" | 100ft. | 0.6" | 1/2" NPT(F) | Hand Crank Hose Reel | - | RFQ
|
