REELCRAFT 4420 OLP Hose Reel, Inner Diameter 1/4 Inch, 300 Psi, Hose Length 20 Feet
Get it by Thursday, Jun 19
€287.60 /unit
Add To Cart
Request a Quote
Payment
Get it by Thursday, Jun 19
Payment
| Item | Hose Reel |
| Hose | Yes |
| Hose Inside Dia. | 1/4" |
| Hose Length | 20 ft. |
| Hose Outside Dia. | 0.475" |
| Max. Pressure | 300 psi |
| Max. Temp. | 150°F |
| Mounting | Ceiling, Floor, Wall |
| Pressure | 300 psi |
| Speed Limited Retraction | No |
| Swivel Material | Brass |
| Weight | 18 lbs. |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Enclosed | No |
| Fasteners Included | No |
| Features | Durable and Compact for a Wide Range Of Applications |
| Fitting Gender | Male x Male |
| Fitting Size | 1/4" x 1/4" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Hose Capacity | 20 ft. (1/4" I.D.) |
| Hose Color | Red |
| Hose Cover Material | PVC |
| Hose End Configuration | 1/4" MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size | 1/4" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size | 1/4" |
| Hose Fitting B Type | NPT |
| Hose Reel Primary Application | Air, Water |
| Hose Reel Type | Ceiling, Floor, Vehicle, Wall Mount Hose Reel |
| Hose Tube Material | PVC |
| Includes | Hose, Bumper |
| Includes Hose | Yes |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch Type | Spring Loaded |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Temperature | 32°F |
| Mount Base Height | 9 21/32" |
| Mount Base Width | 4" |
| Mount Hole Diameter | 5/16" |
| Mounting Hole Center To Center Height | 8" |
| Mounting Hole Center To Center Width | 2 1/2" |
| Number Of Guide Arms | 1 |
| Number Of Mount Holes | 4 |
| Overall Dimensions | 12 5/8" L x 5 5/8" W x 12 7/8" H |
| Overall Height | 12 7/8" |
| Overall Length | 12 5/8" |
| Overall Width | 5 5/8" |
| Pedestal Type | Single Pedestal |
| Reel Color | Red |
| Reel Diameter | 7" |
| Reel Finish | Powder Coated |
| Reel Material | Carbon Steel |
| Reel Width | 5 5/8" |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/4" |
| Swivel Inlet Thread Size | 1/4"-18 |
| Swivel Inlet Type | NPT |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 1/4" |
| Swivel Outlet Thread Size | 1/4"-18 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Ship weight (kg) | 9 |
| Ship height (cm) | 34.29 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 13.65 |

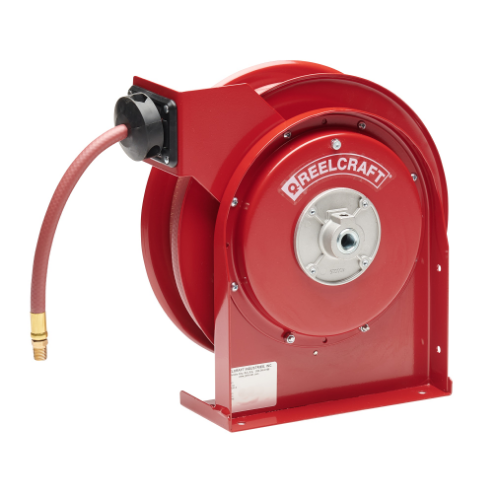

,Series 4000 reels are durable and compact for a wide range of applications with critical space requirements., , ,Hose is plumbed into the base to eliminate the risk of undue stress on the swivel, ,The bent tube swivel design offers a smooth hose transition onto the spool, ,Swivel is nested inside the spool for protection from impact and the environment, ,The reliable speed latch allows for positive locking of the spool in two positions per rotation, ,All steel components are powder coated for maximum corrosion resistance, ,Robotically welded steel base offers maximum strength and consistent quality, ,Made in the USA, , ,*Reel is shipped in the top wind position. The reel image is shown in the side wind position.,
| Product | Model | Hose | Hose I.d. | Hose Length | Hose Outside Dia. | Inlet | Max. Temp. | Pressure | Weight | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4425 OLPSMR | Yes | 1/4" | 25ft. | 0.475" | 1/2" NPT(F) | 150 Deg.F | 300 psi | 19 Lbs. | - | RFQ
|
 |
4625 OLPSMR | Yes | 3/8" | 25ft. | 0.6" | 1/2" NPT(F) | 150 Deg.F | 300 psi | 22 Lbs. | - | RFQ
|
 |
B4425 OLP | Yes | 1/4" | 25ft. | 0.475" | 3/8" NPT(F) | 150 Deg.F | 300 psi | 19 Lbs. | - | RFQ
|
|
B4435 OLP | Yes | 1/4" | 35ft. | 0.475" | 3/8" NPT(F) | 150 Deg.F | 300 psi | 19 Lbs. | - | RFQ
|
|
B4625 OLP | Yes | 3/8" | 25ft. | 0.6" | 3/8" NPT(F) | 150 Deg.F | 300 psi | 20 Lbs. | - | RFQ
|
|
4617 OLP | Yes | 3/8" | 17ft. | 0.6" | 3/8" NPT(F) | 150 Deg.F | 300 psi | 19 Lbs. | - | RFQ
|
|
4435 OLP | Yes | 1/4" | 35ft. | 0.475" | 3/8" NPT(F) | 150 Deg.F | 300 psi | 19 Lbs. | €308.39 |
