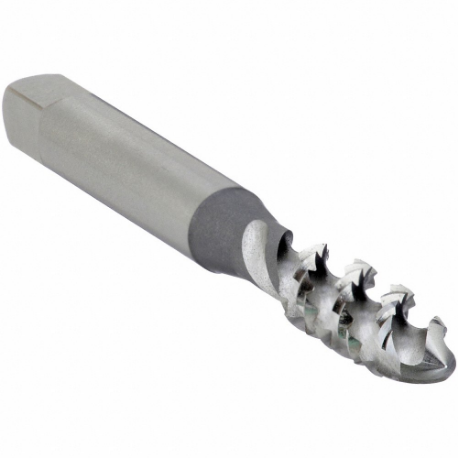

| Item | Spiral Flute Tap |
| 55% Thread Drill Size | #3 |
| 65% Thread Drill Size | #5 |
| 75% Thread Drill Size | #7 |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.198", 0.2013", 0.2045", 0.2078", 0.211" |
| Extended Neck | Yes |
| Features | Spiral Flute Taps For Ferrous And Non-Ferrous Materials |
| Finish | Bright |
| Grade | Grade 107 |
| Helix Angle | 50° |
| Number Of Flutes | 3 |
| Overall Length | 2 1/2" |
| Primary Material Application | All Materials |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Shank Dia. | 1/4" |
| Shank Length | 1.469" |
| Shank Type | Straight |
| Square Size | 0.19" |
| System Of Measurement | Imperial |
| Tap Chamfer | Plug |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 5/8" |
| Thread Limit | H5 |
| Thread Size | 1/4"-20 |
| Thread Standard | Coarse |
| Threads Per Inch | 20 |
| Material Grade - Machining | Grade 107 |
| Measurement System | Fractional Inch |
| Primary Material Application Iso Code | H, K, M, N, O, P, S |
| Secondary Material Application Iso Code | K, N, P |
| Shank Type - Machining | Straight |
| Standards | ANSI |
| Tap Finish | Bright (Uncoated) |
| Tap Style | Spiral Flute |
| Tap Thread Size | 1/4"-20 |
| Thread Limit / Class Of Fit | H5 |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
