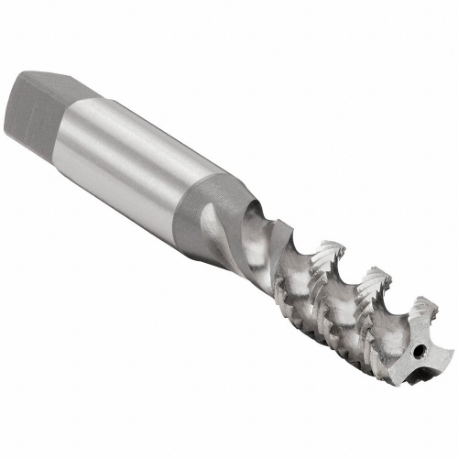

| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 10.2 mm |
| 65% Thread Drill Size | 10 mm |
| 75% Thread Drill Size | 9.95 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.3855", 0.3888", 0.392", 0.3953", 0.3985" |
| Extended Neck | Yes |
| Finish | Bright |
| Fits Class | Class 2B |
| Grade | Grade 298 |
| Helix Angle | 50° |
| Number Of Flutes | 3 |
| Overall Length | 3.156" |
| Primary Material Application | Steel |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper |
| Shank Dia. | 0.312" |
| Shank Length | 1.719" |
| Shank Type | Straight |
| Square Size | 0.242" |
| System Of Measurement | Imperial |
| Tap Chamfer | Bottoming |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 1 7/16" |
| Thread Limit | 2B |
| Thread Size | 7/16"-20 |
| Thread Standard | Fine |
| Threads Per Inch | 20 |
| Class Of Fit | Class 2B |
| Material Grade - Machining | Grade 298 |
| Measurement System | Fractional Inch |
| Primary Material Application Iso Code | P1, P2 |
| Secondary Material Application Iso Code | N |
| Shank Type - Machining | Straight |
| Standards | ANSI |
| Tap Finish | Bright (Uncoated) |
| Tap Style | Spiral Flute |
| Tap Thread Size | 7/16"-20 |
| Thread Limit / Class Of Fit | 2B |
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
