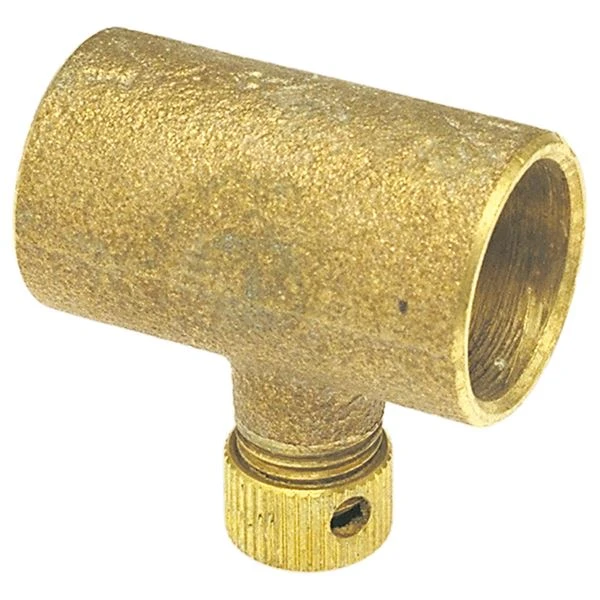

| Item | Drain Coupling |
| Application | Air, Non-Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Coupling |
| Body Material | Cast Bronze |
| Fitting Material | Cast Bronze |
| Fitting Side A Connection Type | Cup |
| Fitting Side B Connection Type | Cup |
| Max. Pressure | 577 psi |
| Outside Dia. | 5/8" |
| Size | 1/2" |
| Specific Pipe Fitting Shape | Coupling |
| Temp. Range | -20°F to +400°F |
| Fitting Side A Copper Tube Size | 1/2" |
| Fitting Side A Tube Outer Diameter | 5/8" |
| Fitting Side B Copper Tube Size | 1/2" |
| Fitting Side B Tube Outer Diameter | 5/8" |
| Material Grade | C84400 |
| Maximum Operating Pressure | 577 psi @ 200°F |
| Maximum Operating Temperature | 400°F |
| Minimum Operating Temperature | 20°F |
| Resistance Properties | Dezincification Resistant |
| Specific Fitting Shape | Drain Coupling |
| Standards | ASME B16.18, ASTM B584 ALLOY C84400, ISO 9001 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 3.3 |
| Ship width (cm) | 3.3 |
| HS code | 7412200085 |
| Country of Origin | US |
| Model | Body Material | Max. Pressure | Outside Dia. | Temp. Range | Tube Size | Price | |
|---|---|---|---|---|---|---|---|
| 701D 3/4 | Cast Bronze | 466 psi@200 Degrees F | 7/8" | -20 Degrees to 400 Degrees F | 3/4" | €18.90 | |
| 701-D-LF 3/4 | Low Lead Cast Bronze | 466 psi | - | -20 Degrees to 200 Degrees F | 3/4" | €25.07 | |
| 701D-LF 1/2 | Low Lead Cast Bronze | 577 psi | - | -20 Degrees to 200 Degrees F | 1/2" | €22.27 |
