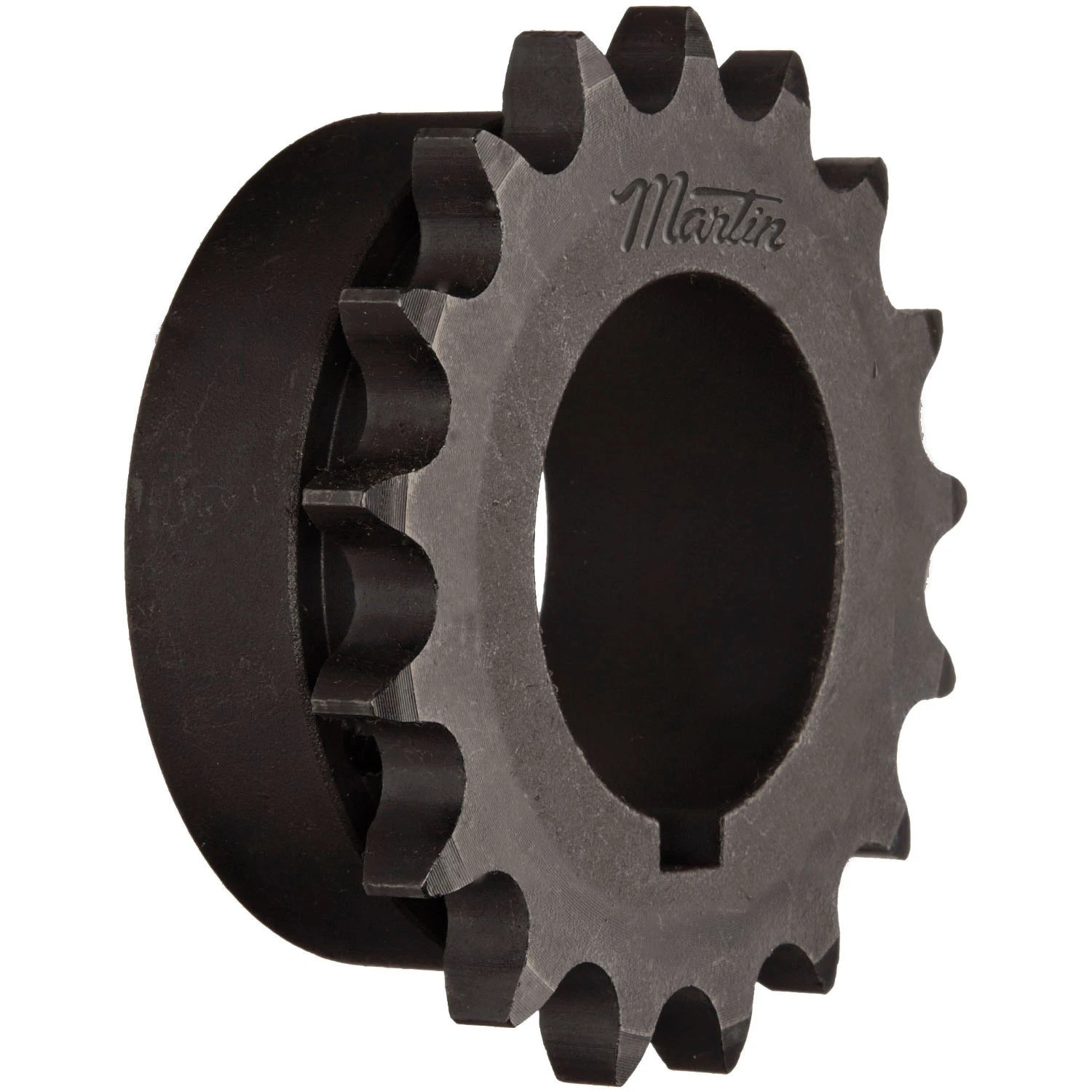

MARTIN SPROCKET 50P16H Sprocket, MST, 50 Chain, 16 Teeth, 3.204 Inch Pitch Dia., 3.517 Inch O.D., Steel
Get it by Tuesday, Jun 17
€105.83 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | P1 |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid With Recess Groove |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 3" |
| Hub Recessed For Chain | 1 |
| Individually Packaged | Yes |
| Keyway Size | 3/8" |
| Length Through Bore | 1 5/16" |
| Material | Steel |
| Max. Bore Size | 1 3/4" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 16 |
| Outside Dia. | 3.517" |
| Pitch Dia. | 3.2036" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1.31" |
| Storage Dimension Length | 3 9/16" |
| Storage Dimension Width | 3 9/16" |
| Weight | 1.4 lbs. |
| Ship weight (kg) | 0.62 |
| Ship height (cm) | 3.33 |
| Ship length (cm) | 8.94 |
| Ship width (cm) | 8.94 |
