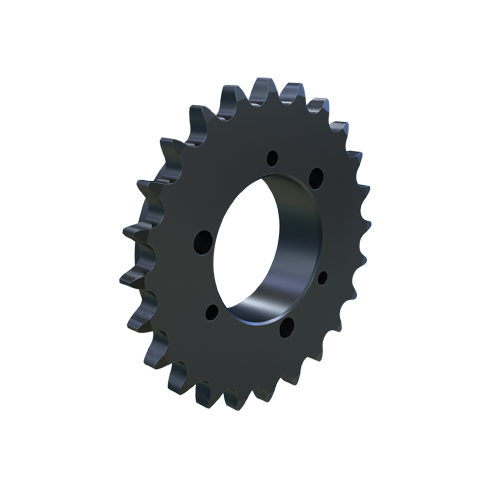

MARTIN SPROCKET 40SH24 Sprocket, QD, 40 Chain, 24 Teeth, 3.831 Inch Pitch Dia., 4.098 Inch O.D., Steel
Get it by Tuesday, Jun 17
€101.94 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | SH |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 2 3/4" |
| Individually Packaged | Yes |
| Length Through Bore | 0.812" |
| Material | Steel |
| Max. Bore Size | 1 11/16" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 24 |
| Outside Dia. | 4.098" |
| Pitch Dia. | 3.8306" |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 15/16" |
| Storage Dimension Length | 4 5/16" |
| Storage Dimension Width | 4 5/16" |
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 3.33 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 10.41 |
