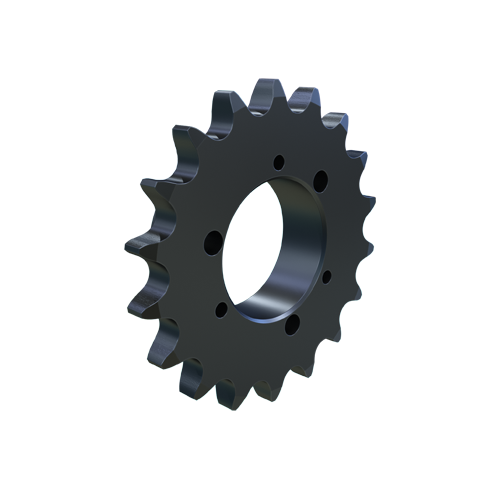

MARTIN SPROCKET 40JA18 Sprocket, QD, 40 Chain, 18 Teeth, 2.879 Inch Pitch Dia., 3.136 Inch O.D., Steel
Get it by Tuesday, Jun 17
€70.39 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | JA |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 2 1/8" |
| Individually Packaged | Yes |
| Length Through Bore | 14/25" |
| Material | Steel |
| Max. Bore Size | 1 1/4" |
| Min. Bore Size | 3/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 18 |
| Outside Dia. | 3.136" |
| Pitch Dia. | 2.8794" |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 3/4" |
| Storage Dimension Length | 3 3/16" |
| Storage Dimension Width | 3 3/16" |
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 7.98 |
| Ship width (cm) | 7.98 |
