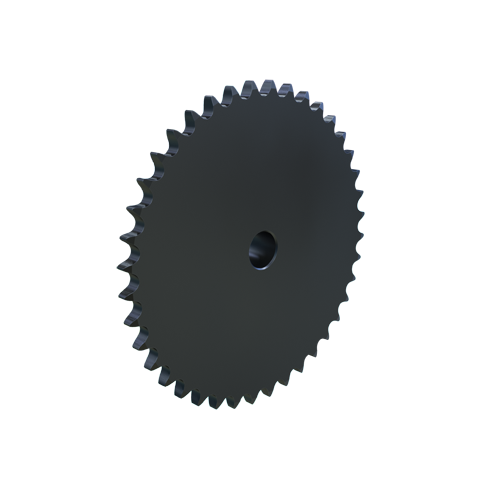

MARTIN SPROCKET 40B40 Sprocket, Stock Bore, 40 Chain, 40 Teeth, 6.373 Inch Pitch Dia., 6.653 Inch O.D., Steel
Get it by Tuesday, Jun 17
€100.02 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Welded |
| Finished Bore Size | 3/4" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 3 1/2" |
| Individually Packaged | No |
| Length Through Bore | 1 1/8" |
| Material | Steel |
| Max. Bore Size | 2 3/8" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 40 |
| Outside Dia. | 6.653" |
| Pitch Dia. | 6.3727" |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1 1/8" |
| Storage Dimension Length | 6.65" |
| Storage Dimension Width | 6.65" |
| Weight | 4.59 lbs. |
| Ship weight (kg) | 2 |
| Ship height (cm) | 2.87 |
| Ship length (cm) | 16.89 |
| Ship width (cm) | 16.89 |
