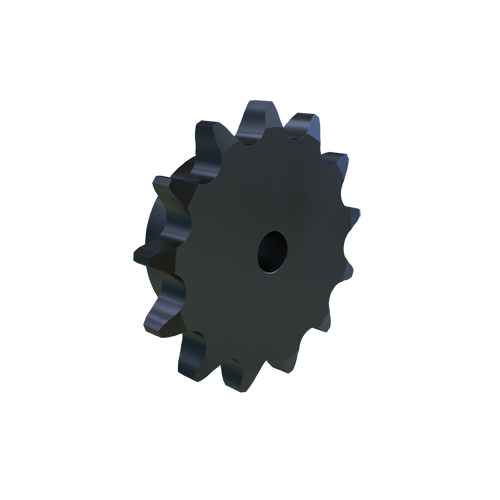

MARTIN SPROCKET 180B13 Sprocket, 180 Chain, 13 Teeth, 9.402 Inch Pitch Dia., 10.479 Inch O.D., Steel
Get it by Tuesday, Jun 17
€742.88 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 180 |
| Chain Pitch | 2 1/4" |
| Construction | Welded |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 180 |
| For Chain Pitch | 2 1/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 6 3/4" |
| Individually Packaged | No |
| Length Through Bore | 3 1/8" |
| Material | Steel |
| Max. Bore Size | 4 5/8" |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 13 |
| Outside Dia. | 10.479" |
| Pitch Dia. | 9.4018" |
| Single Strand Tooth Thickness | 1.301" |
| Storage Dimension Height | 3 1/8" |
| Storage Dimension Length | 10 12/25" |
| Storage Dimension Width | 10 12/25" |
| Weight | 39.57 lbs. |
| Ship weight (kg) | 17.81 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 26.62 |
| Ship width (cm) | 26.62 |
