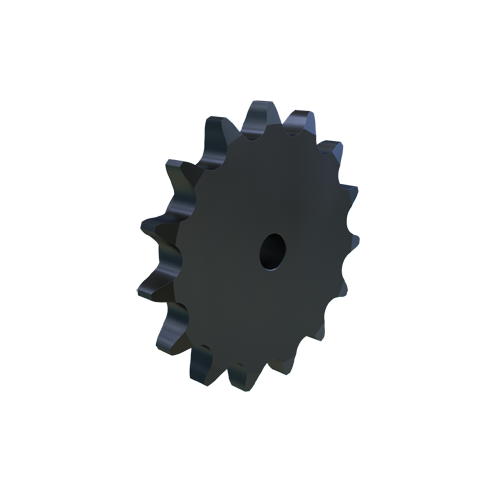

MARTIN SPROCKET 180B15 Sprocket, 180 Chain, 15 Teeth, 10.822 Inch Pitch Dia., 11.935 Inch O.D., Steel
Get it by Tuesday, Jun 17
€790.06 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 180 |
| Chain Pitch | 2 1/4" |
| Construction | Welded |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 180 |
| For Chain Pitch | 2 1/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 7" |
| Individually Packaged | No |
| Length Through Bore | 3 1/8" |
| Material | Steel |
| Max. Bore Size | 5 1/4" |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 15 |
| Outside Dia. | 11.935" |
| Pitch Dia. | 10.8219" |
| Single Strand Tooth Thickness | 1.301" |
| Storage Dimension Height | 3 1/8" |
| Storage Dimension Length | 11.94" |
| Storage Dimension Width | 11.94" |
| Weight | 48.8 lbs. |
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 7.94 |
| Ship length (cm) | 30.33 |
| Ship width (cm) | 30.33 |
