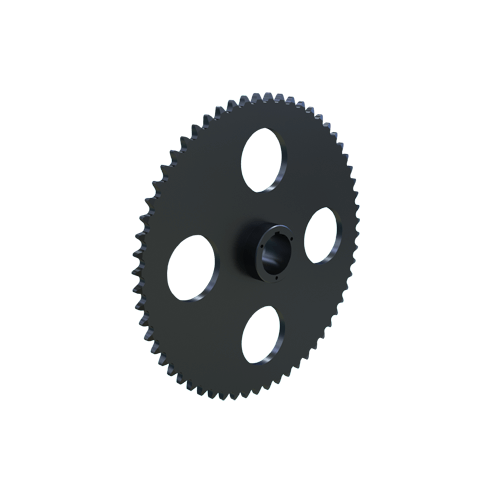

MARTIN SPROCKET 140S60 Sprocket, 140 Chain, 60 Teeth, 33.438 Inch Pitch Dia., 34.442 Inch O.D., Steel
Get it by Tuesday, Jun 17
€2,060.14 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | S2 |
| Chain Number | 140 |
| Chain Pitch | 1 3/4" |
| Construction | Welded With Lightening Holes |
| For Chain Number | 140 |
| For Chain Pitch | 1 3/4" |
| Hub Configuration | C |
| Hub Outside Dia. | 6 1/2" |
| Individually Packaged | No |
| Keyway Size | 3/4" |
| Length Through Bore | 5 11/16" |
| Material | Steel |
| Max. Bore Size | 4 3/16" |
| Min. Bore Size | 1 7/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 60 |
| Outside Dia. | 34.442" |
| Pitch Dia. | 33.4378" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 5.69" |
| Storage Dimension Length | 34.442" |
| Storage Dimension Width | 34.442" |
| Weight | 197 lbs. |
| Ship weight (kg) | 88.12 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 87.48 |
| Ship width (cm) | 87.48 |
