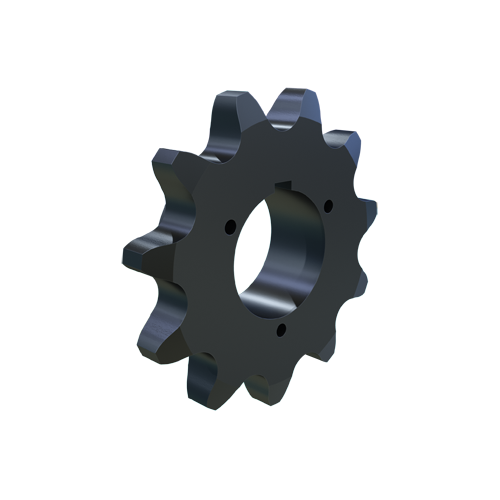

MARTIN SPROCKET 140Q11H Sprocket, 140 Chain, 11 Teeth, 6.212 Inch Pitch Dia., 7.010 Inch O.D., Steel
Get it by Tuesday, Jun 17
€534.58 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | Q1 |
| Chain Number | 140 |
| Chain Pitch | 1 3/4" |
| Construction | Solid |
| For Chain Number | 140 |
| For Chain Pitch | 1 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 4 1/8" |
| Individually Packaged | No |
| Keyway Size | 1/2" |
| Length Through Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 11 |
| Outside Dia. | 7.01" |
| Pitch Dia. | 6.2116" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 7.01" |
| Storage Dimension Width | 7.01" |
| Weight | 7.06 lbs. |
| Ship weight (kg) | 3.18 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 17.81 |
| Ship width (cm) | 17.81 |
