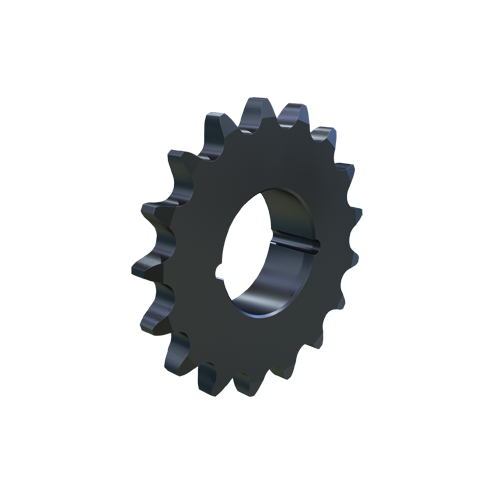

MARTIN SPROCKET 100BTB17 Roller Chain Sprocket, 100 Chain, Bushed TB, 17 Teeth, 6.803 Inch Pitch Dia., Steel
Get it by Tuesday, Jun 17
€305.06 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | 2517 |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Welded |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 4 1/2" |
| Individually Packaged | No |
| Length Through Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 1/2" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 17 |
| Outside Dia. | 7.437" |
| Pitch Dia. | 6.8027" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 7.437" |
| Storage Dimension Width | 7.437" |
| Weight | 7 lbs. |
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 18.9 |
| Ship width (cm) | 18.9 |
