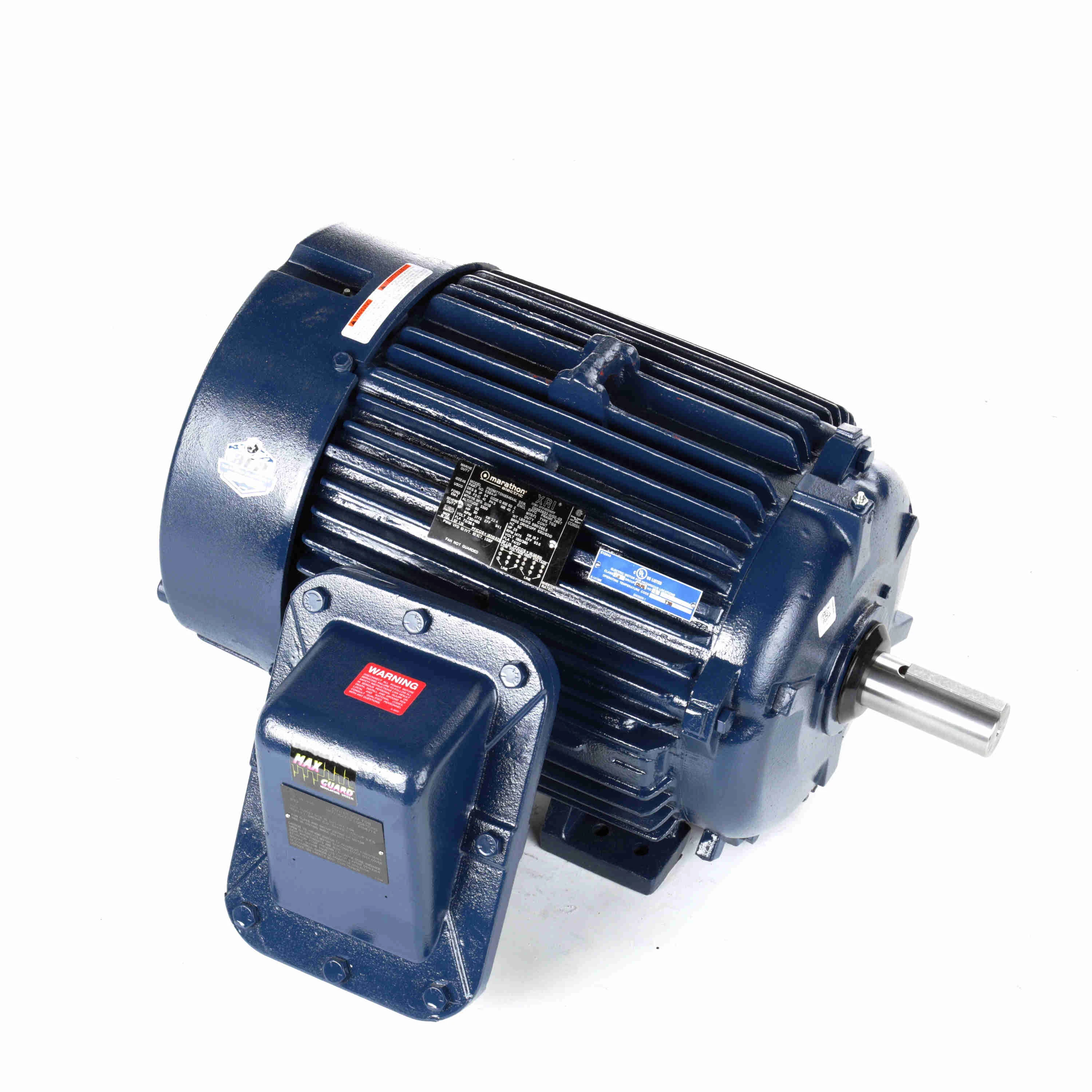

| Item | Hazardous Location Motor |
| Class | Class I-Group C & D, Class II-Group F & G |
| Enclosure Type | Explosion Proof Fan Cooled |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Hazardous Location Class | 1C, D/2F, G |
| Hazardous Location Division | Division 1 |
| Hp | 30 hp |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 7/8" |
| Temp. Code | T3C |
| Ship weight (kg) | 265.5 |
| Ship height (cm) | 55.6 |
| Ship length (cm) | 88.9 |
| Ship width (cm) | 66.04 |
| HS code | 8501528040 |
| Country of Origin | US |
| Product | Model | Efficiency Group | Enclosure | Frame | Frame Size | Full Load Amps | Hazardous Location Class | HP | Hz | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
364TTGS16536 | NEMA Premium | Totally Enclosed Fan-Cooled | 364T | - | 138/69 | 1 C,D / 2 F,G | 60 | 60 | €10,094.21 | |
 |
365TTGS16540 | NEMA Premium | Totally Enclosed Fan-Cooled | 365T | - | 174/87, 169/84.5 | 1 C,D / 2 F,G | 75 | 50/60 | €11,716.72 | |
 |
286TTGN16577 | NEMA Premium | Totally Enclosed Fan-Cooled | 284/6T | - | 53.5/26.8 | 1 C,D / 2 F,G | 20 | 60 | €5,576.97 | |
 |
326TTGS6532 | NEMA Premium | Totally Enclosed Fan-Cooled | 324/6T | - | 123/61.5 | 1 C,D / 2 F,G | 50 | 50/60 | €7,280.19 | |
 |
364TTGS16577 | NEMA Premium | Totally Enclosed Fan-Cooled | 364T | - | 100/50 | 1 C,D / 2 F,G | 40 | 50/60 | €10,368.75 | |
 |
324TSTGS6501 | Premium | Totally Enclosed Fan-Cooled | 324TS | - | 94/47 | 1 C,D / 2 F,G | 40 | 50/60 | €7,690.90 | |
 |
324TTGS6529 | Premium | Totally Enclosed Fan-Cooled | 324T | - | 95/47.5 | 1 C,D / 2 F,G | 40 | 50/60 | €6,867.84 |
