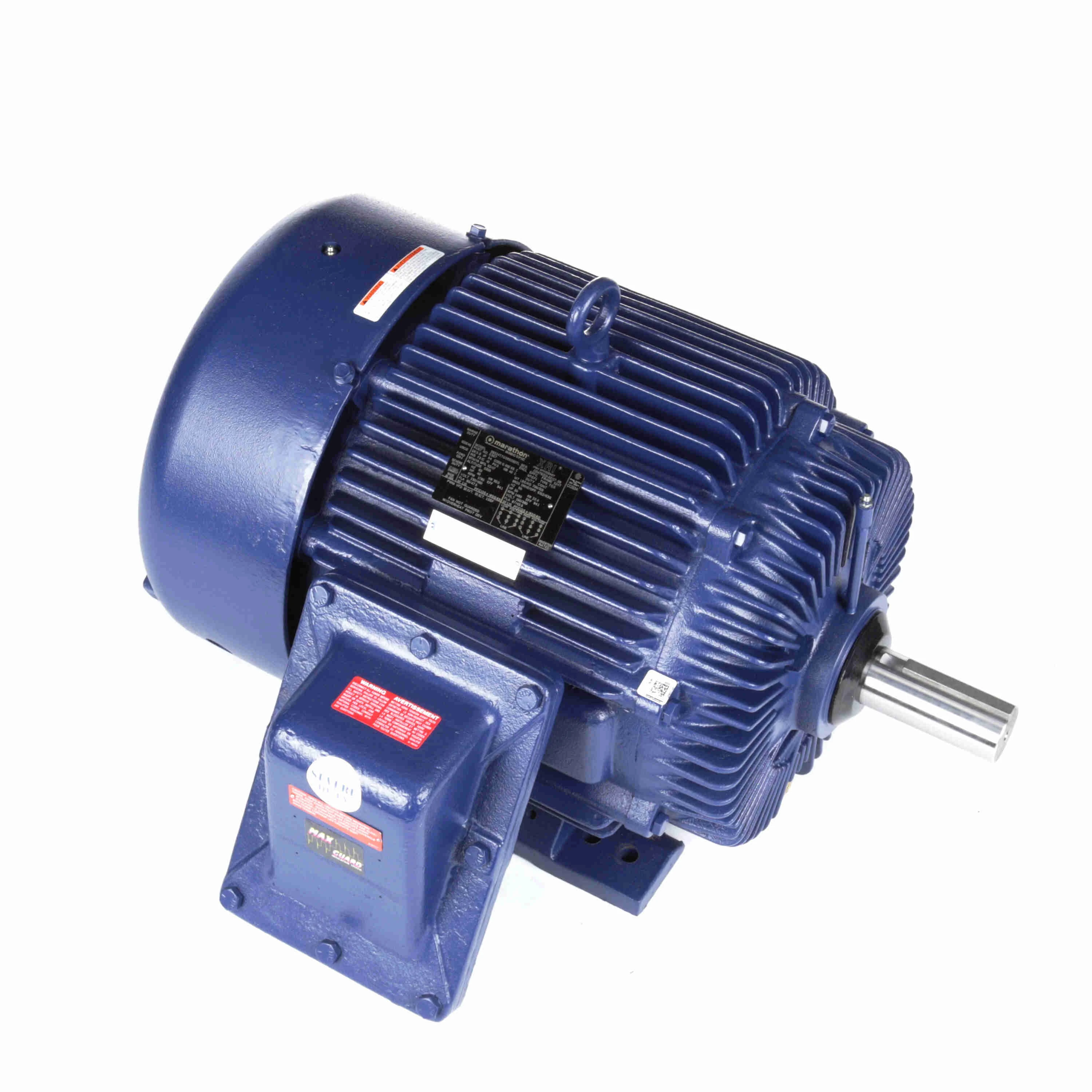

| Item | Hazardous Location Motor |
| Ambient Temp. | 40°C |
| Bearings | Ball |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency Group | Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 324T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Hazardous Location Class | 1C, D/2F, G |
| Hazardous Location Division | Division 1 |
| Hp | 40 hp |
| Includes | (11) Leads In Conduit Box |
| Insulation Class | Class F |
| Lead Length | 6" |
| Length Less Shaft | 24 13/16" |
| Motor Application | Hazardous Location |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Type | Three Phase |
| Nameplate Rpm | 1780 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 94.1% |
| Number Of Speeds | 1 |
| Overall Length | 30 3/8" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 2 1/8" |
| Shaft Length | 5 1/2" |
| Temp. Code | T3B |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Warranty | 3 yrs. |
| Full Load Amps | 95/47.5A |
| Hz | 60 |
| Ins. Class | Class F |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 104°F |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T-Stat |
| Standards | CSA CERTIFIED, UL LISTED |
| Voltage | 230/460V AC |
| Weight | 321 lbs. |
| Ship weight (kg) | 341.55 |
| Ship height (cm) | 62.56 |
| Ship length (cm) | 96.22 |
| Ship width (cm) | 80.98 |
| HS code | 8501528040 |
| Country of Origin | US |
| Product | Model | Efficiency Group | Enclosure | Frame | Frame Size | Full Load Amps | Hazardous Location Class | HP | Hz | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
364TTGS16536 | NEMA Premium | Totally Enclosed Fan-Cooled | 364T | - | 138/69 | 1 C,D / 2 F,G | 60 | 60 | €10,094.21 | |
 |
365TTGS16540 | NEMA Premium | Totally Enclosed Fan-Cooled | 365T | - | 174/87, 169/84.5 | 1 C,D / 2 F,G | 75 | 50/60 | €11,716.72 | |
 |
286TTGN16577 | NEMA Premium | Totally Enclosed Fan-Cooled | 284/6T | - | 53.5/26.8 | 1 C,D / 2 F,G | 20 | 60 | €5,576.97 | |
 |
326TTGS6532 | NEMA Premium | Totally Enclosed Fan-Cooled | 324/6T | - | 123/61.5 | 1 C,D / 2 F,G | 50 | 50/60 | €7,280.19 | |
 |
364TTGS16577 | NEMA Premium | Totally Enclosed Fan-Cooled | 364T | - | 100/50 | 1 C,D / 2 F,G | 40 | 50/60 | €10,368.75 | |
 |
324TSTGS6501 | Premium | Totally Enclosed Fan-Cooled | 324TS | - | 94/47 | 1 C,D / 2 F,G | 40 | 50/60 | €7,690.90 | |
 |
286TTGN6537 | - | EPFC | 286T | - | 73/36.5 | EXP PROOF CL I GR C&D CL II GR F&G T3B | 30 | 60 | - | RFQ
|
