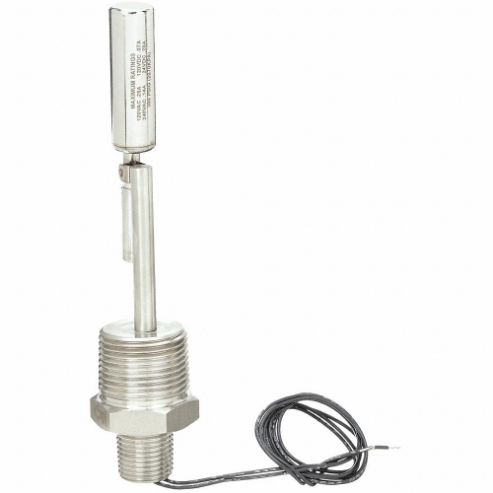

MADISON M5900 Level Switch 1/2 Inch x 1 Inch Npt Selectable Ss

Name: MADISON M5900 Level Switch 12 Inch x 1 Inch Npt Selectable Ss
Brand: MADISON
SKU: AC4HUW
Price: 210.53 EUR
Availability: InStock

In Stock

Item: AC4HUW Model: M5900Cross Ref: 2ZY25

Check Availability

See variants (24)

Get it by May 24, Friday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

€210.53 /unit

Add To Cart

Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

Item	Liquid Level Switch
Body Material	316 Stainless Steel
Conduit Size	1/2" x 1"
Contact Form	SPDT
Electrical Connections	22 ga. PTFE Coated 24" Leads
Float Dia.	0.63"
Float Length	2.00"
Float Material	316 SS
Float Specific Gravity	0.60
Max. Current	0.28A
Max. Pressure	300 psi
Max. Voltage	240
Mounting	Horizontal
Operating Temp. Range	392 Degrees F Max.
Overall Length	4.6"
Stem Length	4.6"
Stem Material	316 SS
Switch Function	Selectable
Tank Connection Size	1/2" x 1" NPT
VA Rating	30

Shipping Info:

Ship weight (kg)	0.29
Ship height (cm)	5.08
Ship length (cm)	17.78
Ship width (cm)	8.89
HS code	9032896060
Country of Origin	US

Product Variants

Model	Max. Pressure	Body Material	Conduit Size	Mounting	Operating Temp. Range	Overall Length	Stem Length	Stem Material	Price
M8800	100 psi	Polypropylene	1/4"	Vertical	221 Degrees F Max.	3.380"	2.63"	Polypropylene	€88.07
M4300	150 psi	Brass	1/4"	Vertical	221 Degrees F Max.	3.380"	2.63"	Brass	€69.89
M8000	100 psi	Polypropylene	1/8"	Vertical	221 Degrees F Max.	2.25"	1.63"	Polypropylene	€18.72
M8700	100 psi	Polypropylene	1/2" x 1/2"	Horizontal	221 Degrees F Max.	2.75"	2.75"	Polypropylene	€17.35
M4010	100 psi	Brass	3/8-20"	Horizontal	221 Degrees F Max.	2.96"	2.96"	Brass	€68.29
M5910	300 psi	316 Stainless Steel	1/4" x 1/2"	Horizontal	392 Degrees F Max.	4.6"	4.6"	316 SS	€201.34
M5917	200 psi	316 Stainless Steel	1/4"	Vertical	482 Degrees F Max.	3.380"	2.63"	316 SS	€108.52
