MADISON
MADISON M5917 Liquid Level Switch 1/4 Inch Npt Selectable 316 Stainless Steel | AC4HUY 2ZY27

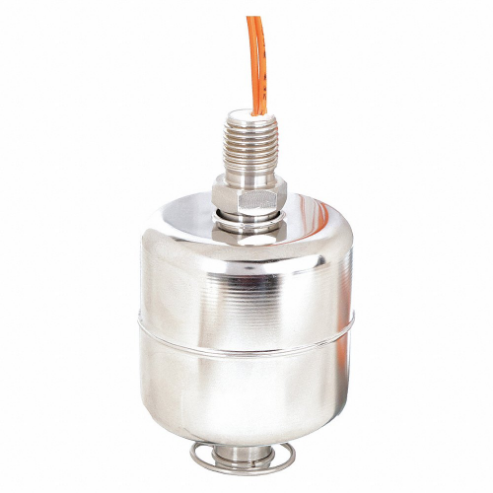

MADISON M5917 Liquid Level Switch 1/4 Inch Npt Selectable 316 Stainless Steel

In Stock
Item: AC4HUY Model: M5917Cross Ref: 2ZY27
Check Availability
See variants (24)

Get it by May 24, Friday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€108.52 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemLiquid Level Switch
Body Material316 Stainless Steel
Conduit Size1/4"
Contact FormSPST
Electrical Connections18 ga.PTFE Coated 24" Leads
Float Dia.2.13"
Float Length2.00"
Float Material316 SS
Float Specific Gravity0.55
Height3.38"
Max. Current0.50A
Max. Pressure200 psi
Max. Voltage240
MountingVertical
Operating Temp. Range482 Degrees F Max.
Overall Length3.380"
Stem Length2.63"
Stem Material316 SS
Switch FunctionSelectable
Tank Connection Size1/4" NPT
VA Rating60
Width3.38"

Shipping Info:

Ship weight (kg) 0.14
Ship height (cm)5.08
Ship length (cm)12.7
Ship width (cm)10.16
HS code9026106000
Country of OriginUS

Product Details:

Madison M5917 liquid-level switch mounts on a tank or vessel's top and bottom surfaces to activate high / low alarms or controls for motor starters, contactors, solenoids and relays. It is ideal for food processing equipment like fryers and evaporators.

Features:

  • Madison M5917 liquid-level switch is made of stainless steel to withstand harsh conditions and promote long life.
  • It provides reliable single-point detection of tank level via true mechanical float switch actuation.
  • This switch is beneficial in oil level maintenance for temperature consistency.

Standards and Approvals:

  • CE
  • CSA
  • NSF
  • UL

Frequently Asked Questions:

Q. What is the maximum operating temperature of this switch?

A. 250 degrees Celcius.

Q. What is the maximum pressure rating of Madison M5917 switch?

A. 200 psig.

Product Variants

ProductModelMax. PressureBody MaterialConduit SizeMountingOperating Temp. RangeOverall LengthStem LengthStem MaterialPrice
MADISON M8800 Liquid Level Switch 1/4 Inch Npt Selectable Pp | AB8WLC 2A552 M8800100 psiPolypropylene1/4"Vertical221 Degrees F Max.3.380"2.63"Polypropylene€88.07
MADISON M4300 Liquid Level Switch 1/4 Inch Npt Selectable Bunan | AB8WLD 2A553 M4300150 psiBrass1/4"Vertical221 Degrees F Max.3.380"2.63"Brass€69.89
MADISON M8000 Liquid Level Switch 1/8 Inch Npt Selectable Pp | AB8WLE 2A554 M8000100 psiPolypropylene1/8"Vertical221 Degrees F Max.2.25"1.63"Polypropylene€18.72
MADISON M8700 Level Switch 1/2 Inch x 1/2 Inch Npt Selectable Pp | AC3XCB 2XC13 M8700100 psiPolypropylene1/2" x 1/2"Horizontal221 Degrees F Max.2.75"2.75"Polypropylene€17.35
MADISON M4010 Liquid Level Switch 3/8-20 Unf | AC4HUV 2ZY24 M4010100 psiBrass3/8-20"Horizontal221 Degrees F Max.2.96"2.96"Brass€68.29
MADISON M5900 Level Switch 1/2 Inch x 1 Inch Npt Selectable Ss | AC4HUW 2ZY25 M5900300 psi316 Stainless Steel1/2" x 1"Horizontal392 Degrees F Max.4.6"4.6"316 SS€210.53
MADISON M5910 Level Switch 1/4 Inch x 1/2 Inch Npt Selectable Ss | AC4HUX 2ZY26 M5910300 psi316 Stainless Steel1/4" x 1/2"Horizontal392 Degrees F Max.4.6"4.6"316 SS€201.34
View All
