Get it by Tuesday, Jun 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

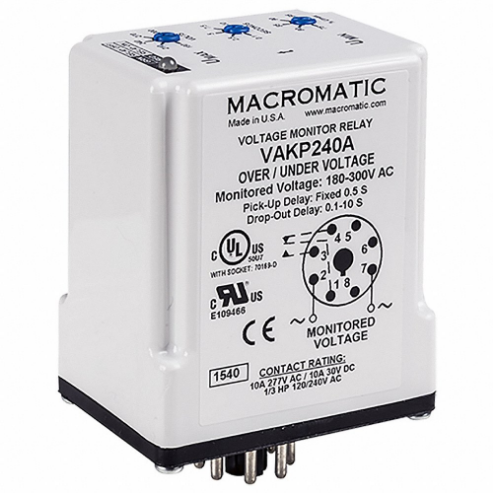

| Item | Voltage Sensing Relay |
| Amps Rating | 10A |
| Base Shape | Octal |
| Base Type | Octal |
| Body Depth | 1.7" , 2.9" |
| Body Height | 2 2/5" , 3 1/2" |
| Body Width | 1.7" |
| Body Width - Relay | 2 2/5" |
| Drop Out Voltage Setting | Adjustable % Of Pick-Up Voltage Setting |
| Electrical Connection Type | Pin |
| Mounting - Relay | Plug In |
| Number Of Contacts | 1 |
| Number Of Pins | 8 |
| Number Of Pins - Relay | 8 |
| Overall Depth | 3" |
| Overall Height - Relay | 4" |
| Phase | 1 |
| Pick-up | Adjustable Across Full Range As Shown On The Product Nameplate |
| Power Consumption | 2 VA |
| Relay Mounting Style | Socket |
| Socket Code | A |
| Trip Delay | 0.1 sec. to 10 sec. |
| Contact Form | SPDT |
| Contact Rating (ac) | 10A @ 240V |
| Contact Rating (dc) | 7A @ 30V |
| Current Rating | 10A |
| Drop-out Range | 75% to 95% |
| Electrical Operating Durability | 100000 |
| Frequency | 50/60 Hz |
| Input Voltage | 240V AC |
| Mechanical Operating Durability | 10000000 |
| Monitored Parameters | Overvoltage, Undervoltage |
| Number Of Pins/terminals | 8 |
| Pick Up Range | 180-300V AC |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 4.32 |
| Country of Origin | US |
| Product | Model | Base Type | Contact Amp Rating (resistive) | Contact Form | Current Rating | Input Voltage | Item | Load Capacity | Output Current | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PMPU | Octal | 10 | SPDT | - | 208-480 VAC | 3-Phase Line Monitor | - | - | €152.05 | |
 |
PAP208 | Octal | 10 | SPDT | - | 208 VAC | 3-Phase Line Monitor | - | - | €104.98 | |
 |
PAP240 | Octal | 10 | SPDT | - | 240 VAC | 3-Phase Line Monitor | - | - | €87.52 | |
 |
PAP480 | Octal | 10 | SPDT | - | 480 VAC | 3-Phase Line Monitor | - | - | €88.18 | |
 |
PMPU-FA8 | Octal | 10 | SPDT | - | 208-480 VAC | 3-Phase Line Monitor | - | - | €116.93 | |
 |
VWKE120A | DIN Rail | 16 | SPDT | - | 120 VAC | Voltage Sensing Relay | - | - | €59.81 | |
 |
VWKE240A | DIN Rail | 16 | SPDT | - | 240 VAC | Voltage Sensing Relay | - | - | €100.32 |
