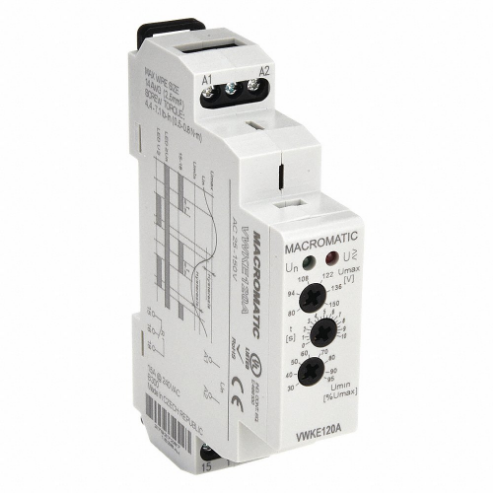

| Item | Voltage Sensing Relay |
| Amps Rating | 15A |
| Base Shape | Square |
| Base Type | DIN Rail |
| Body Depth | 0.69" , 2 13/25" |
| Body Height | 2 13/25" , 3.55" |
| Body Width | 0.69" |
| Body Width - Relay | 3.54" |
| Drop Out Voltage Setting | Adjustable % Of Pick-Up Voltage Setting |
| Electrical Connection Type | Screw |
| Flat Pin Width | Not Applicable |
| Function | Voltage Band Relay |
| Input Voltage | 120V AC |
| Monitored Parameters | Voltage Band |
| Number Of Contacts | 1 |
| Number Of Pins | 0 , 5 |
| Number Of Pins - Relay | 5 |
| Overall Depth | 3.55" |
| Overall Height - Relay | 2 13/25" |
| Phase | 1 |
| Power Rating | 2 VA |
| Promotion Restriction | Not Eligible For Promotion |
| Resistive Contact Amp Rating | 16A |
| Trip Delay | 0.1 sec. to 10 sec. |
| Contact Form | SPDT |
| Contact Rating (ac) | 15A @ 240V |
| Contact Rating (dc) | 15A @ 24V |
| Current Rating | 15A |
| Drop-out Range | 30% to 95% |
| Electrical Operating Durability | 70000 |
| Frequency | 50/60 Hz |
| Ip Rating | IP40 |
| Mechanical Operating Durability | 10000000 |
| Number Of Pins/terminals | 5 |
| Pick Up Range | 80-150V AC |
| Power Consumption | 1.7 W, 3 VA |
| Relay Mounting Style | DIN-Rail |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 9.02 |
| Ship length (cm) | 6.4 |
| Ship width (cm) | 1.75 |
| HS code | 8536490075 |
| Country of Origin | CZ |
| Product | Model | Base Type | Contact Amp Rating (resistive) | Contact Form | Current Rating | Input Voltage | Item | Load Capacity | Output Current | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PMPU | Octal | 10 | SPDT | - | 208-480 VAC | 3-Phase Line Monitor | - | - | €152.05 | |
 |
PAP208 | Octal | 10 | SPDT | - | 208 VAC | 3-Phase Line Monitor | - | - | €104.98 | |
 |
PAP240 | Octal | 10 | SPDT | - | 240 VAC | 3-Phase Line Monitor | - | - | €87.52 | |
 |
PAP480 | Octal | 10 | SPDT | - | 480 VAC | 3-Phase Line Monitor | - | - | €88.18 | |
 |
PMPU-FA8 | Octal | 10 | SPDT | - | 208-480 VAC | 3-Phase Line Monitor | - | - | €116.93 | |
 |
VWKE240A | DIN Rail | 16 | SPDT | - | 240 VAC | Voltage Sensing Relay | - | - | €100.32 | |
 |
PMDU | - | - | - | - | - | Phase Monitor Relay | - | - | €208.64 |
